515nm-Laser -DPSSL CRYLINK

CRYLINK’s 515 nm laser is 515nm Microchip Laser. 515nm microchip laser is mainly used in spectrum detection, pump source, material micromachining and other fields.

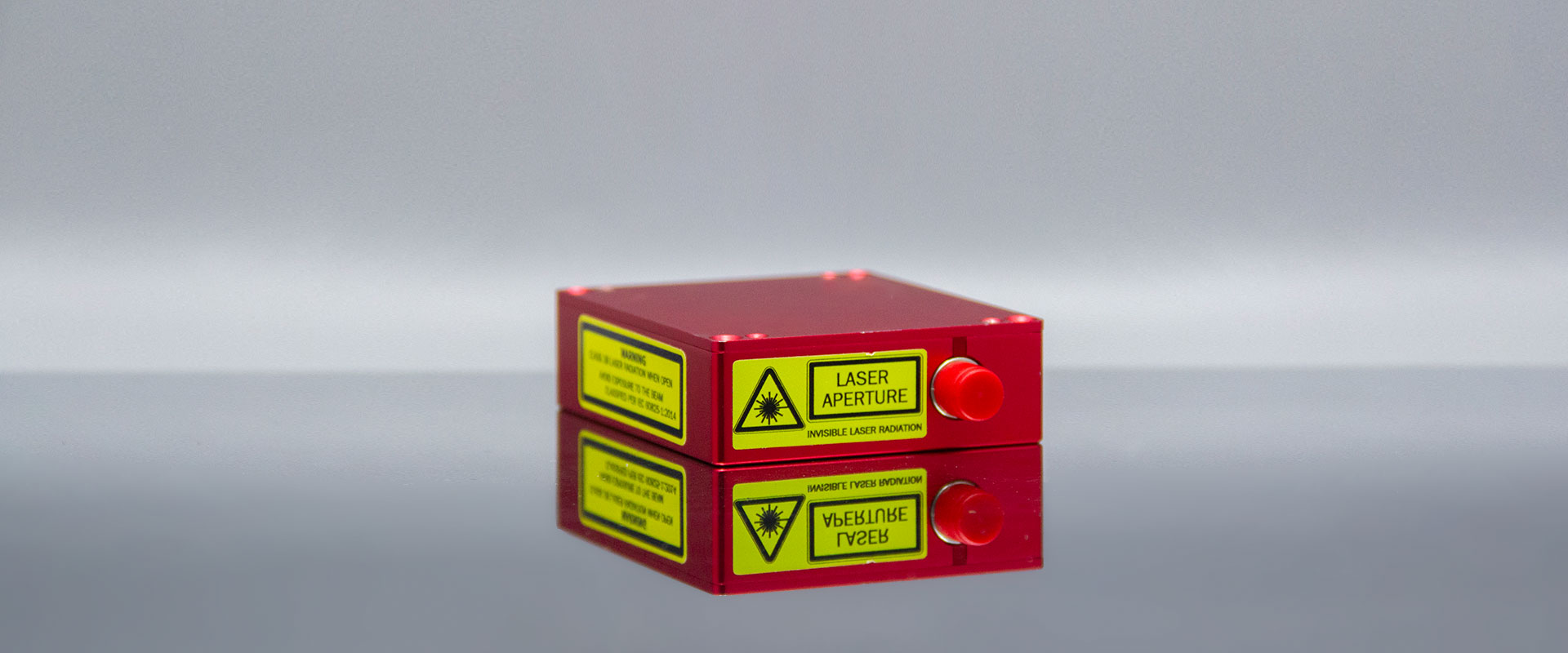

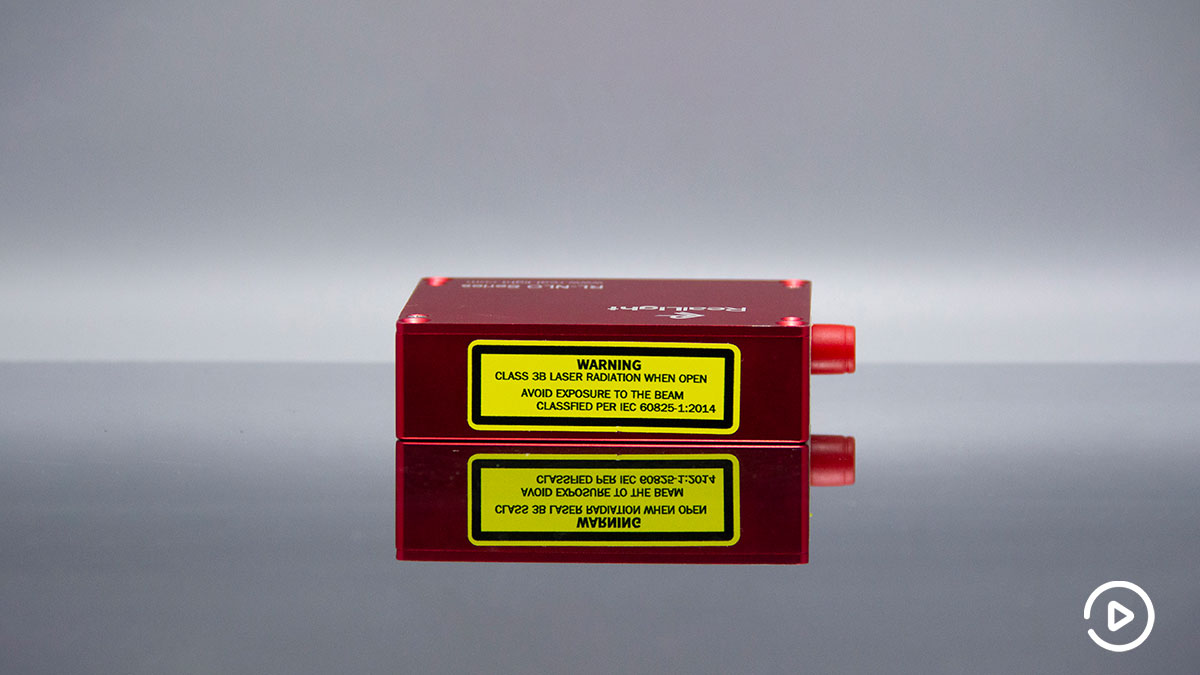

515nm Microchip Laser System of MCJ Series

MCJ series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure without tail, the single pulse energy is stable and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include two wavelengths of 1030nm and 515nm. The fully sealed module inside the laser head can be used by customers for secondary development and application.

Download PDF
Inquiry

Parameter

Optical Parameter
 CL515-100Hz-40μJ-MCJ001CL515-1KHz-40μJ-MCJ002CL1515-2KHz-40μJ-MCJ003
Wavelength (nm)515515515
Repetition Frequency (kHz)0.112
Average Powe (mW)44080
Output Energy (uJ)404040
Pulse Width (ns)111
Power Stability (8h)±3%±3%±3%
Beam ModeTEM00TEM00TEM00
Full-Angle Divergence Angle Typ.
(Mrad) Level  @ 1/e2
<4<4<5
Vertical @ 1 / e2<4<4<5
Polarization Characteristics>100:1>100:1>100:1
System Parameter
 CL515-100Hz-40μJ-MCJ001CL515-1KHz-40μJ-MCJ002CL1515-2KHz-40μJ-MCJ003

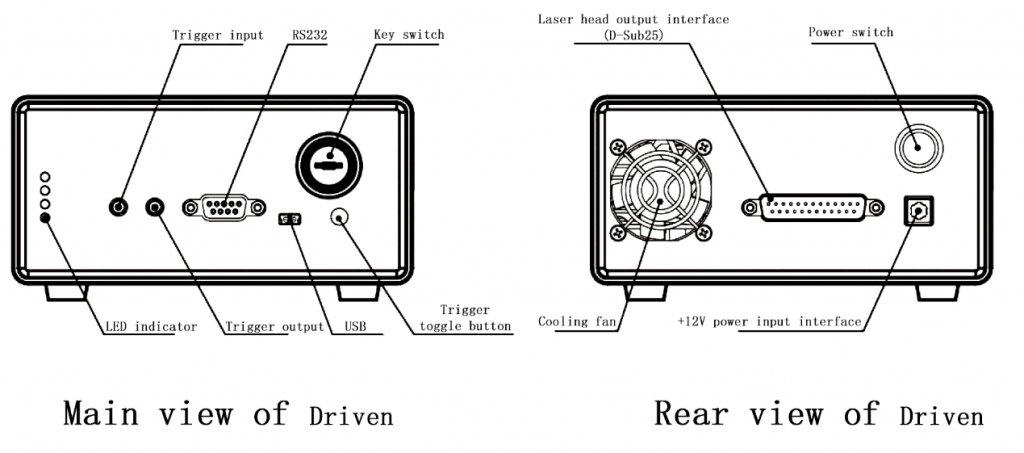

Power Input100-240 VAC,50/60Hz100-240 VAC,50/60Hz100-240 VAC,50/60Hz
Modulation InputTTL0-5V,SMA interfaceTTL0-5V,SMA interfaceTTL0-5V,SMA interface
Control InterfaceRS232、USBRS232、USBRS232、USB
System Power Consumption (W)<15<15<25

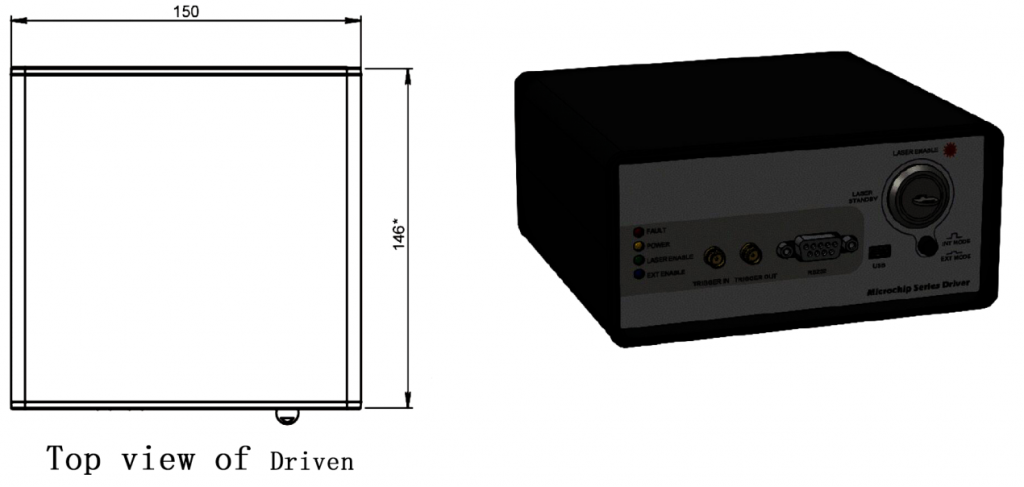

Power Supply Size (W × H × L, mm)150×76×146150×76×146150×76×146
Laser Head Size (W × H × L, mm)45×30×12045×30×12045×30×120
Working Temperature (℃)15-3515-3515-35
Storage Temperature (℃)0-600-600-60

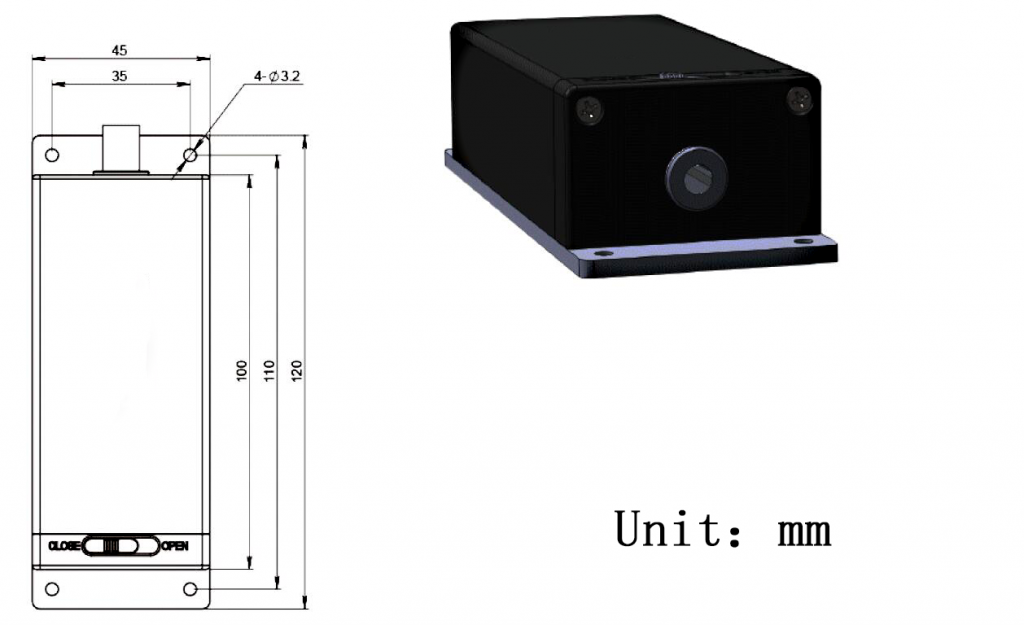

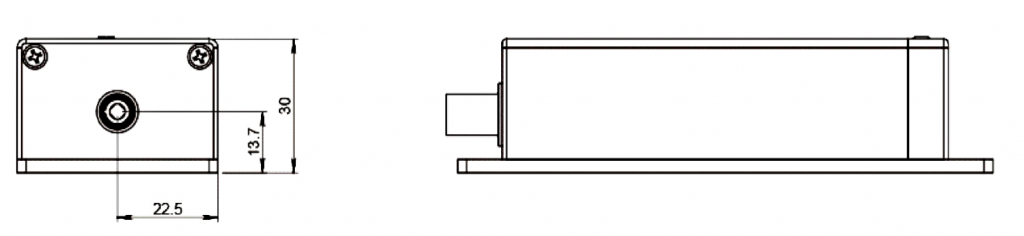

Outline Size (mm)

Feature
Application
Feature
  • Pulse width up to 1ns
  • Pulse energy up to 100μJ
  • Repetition frequency up to 2kHz
  • Beam mode is TEM00
Application
  • Material micromachining
  • Spectrum detection
  • Lidar
  • Pump source
  • Biomedical Science
