Home » 532nm Active Q-Switched Laser

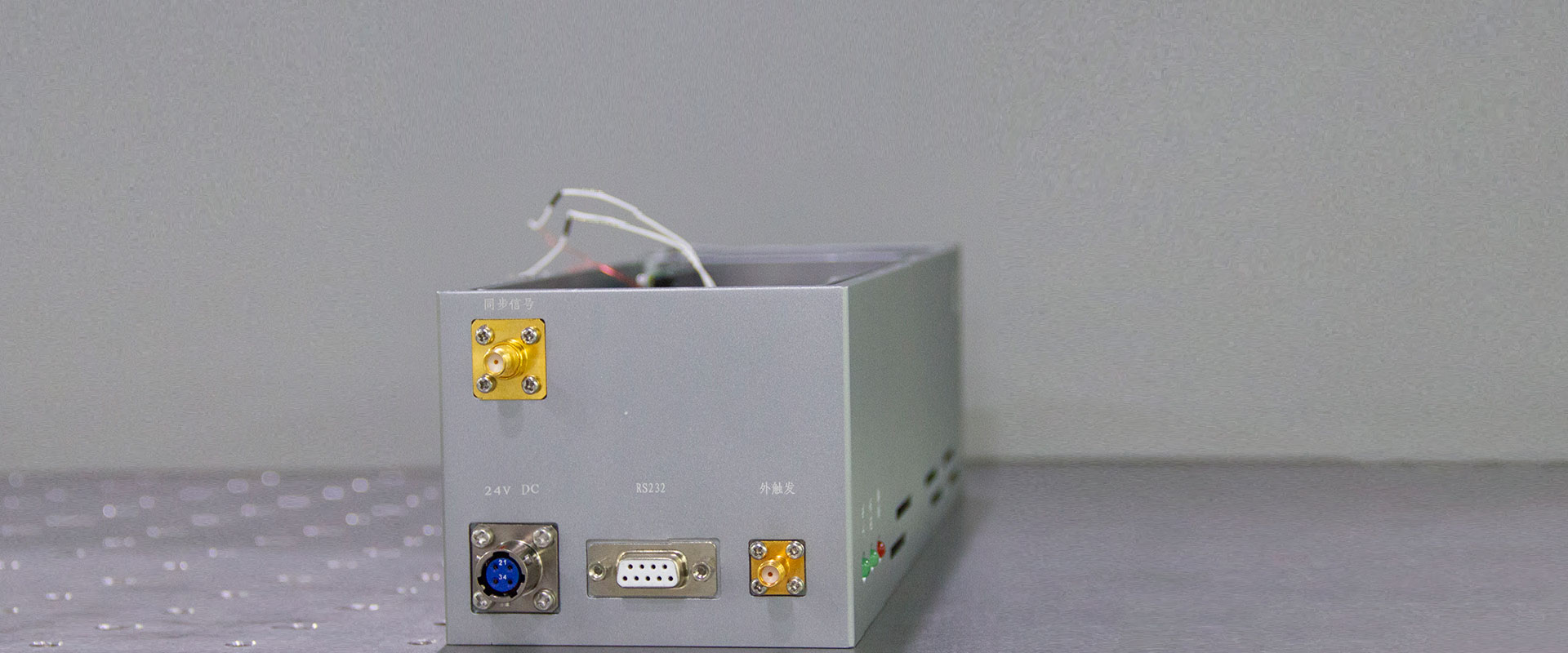

532nm Active Q-Switched Laser

This series of products include active Q-switching and passive Q-switching microchip two technical solutions to generate sub nanosecond optical pulses, output sub nanosecond laser pulses while maintaining excellent beam quality. For the active Q-switched technology, the jitter of the output optical signal and the trigger signal is less than 1 ns, and for the passive Q-switched microchip laser, the jitter of the output signal and the external trigger signal is less than 10 μ s. The laser can be used alone or as seed source of laser amplifier. At the same time, the laser amplifier of our company can be used to amplify the energy to tens of mJ. At the same time, the wavelength can be extended to 532nm, 355nm, 266nm, etc. The product has the advantages of good beam quality, high peak power, reliable performance, compact structure, simple operation and maintenance. Combined with excellent production technology, this series of products can meet the requirements of airborne, vehicle mounted, high and low temperature and other harsh environments.

Download PDF
Inquiry

Parameter

Optical Parameter
 CL532-3mJ-AQNL001CL532-5mJ-AQNL002CL532-10mJ-AQNL003
Energy @532nm3mJ5mJ10mJ
Energy Stability<3%<3%<3%
Repeat Frequency1~10kHz1~5kHz1~5kHz
Pulse Width<1.5ns<1.5ns<1.5ns
Beam Quality M2<2<2<2.5
Divergence (Full Angle)<1mrad<1mrad<1mrad
Spot Diameter(1/e2) ~2mm~2mm~4mm
Function Parameter
 CL532-3mJ-AQNL001CL532-5mJ-AQNL002CL532-10mJ-AQNL003
Control InterfaceDB9,RS422DB9,RS422DB9,RS422
Cooling MethodWater coolingWater coolingWater cooling
Powered By220VAC/50Hz220VAC/50Hz220VAC/50Hz
Environmental Requirements
 CL532-3mJ-AQNL001CL532-5mJ-AQNL002CL532-10mJ-AQNL003
Operating Temperature15-35℃15-35℃15-35℃
Storage Temperature-15-50℃-15-50℃-15-50℃
Humidity0-80%0-80%0-80%
Weight and Size
 CL532-3mJ-AQNL001CL532-5mJ-AQNL002CL532-10mJ-AQNL003
Power WeightCustomizedCustomizedCustomized
Laser Head sizeCustomizedCustomizedCustomized
Power SizeCustomizedCustomizedCustomized
Structure

Feature
Application
Feature
  • Active Q
  • Narrow pulse width and high peak power
  • High stability and compact structure
  • High beam quality
Application
  • Laser Radar
  • Point Cloud Imaging Radar
  • Ranging
  • Laser Remote Sensing
  • Photoelectric Detection
  • Laser Fine Processing
