1030nm Laser
CRYLINK’s 1030 nm laser is 1030 nm Microchip Laser System of MJ Series. Its main applications are Material micromachining, Spectrum detection, Lidar, Pump source, Biomedical Science,etc.

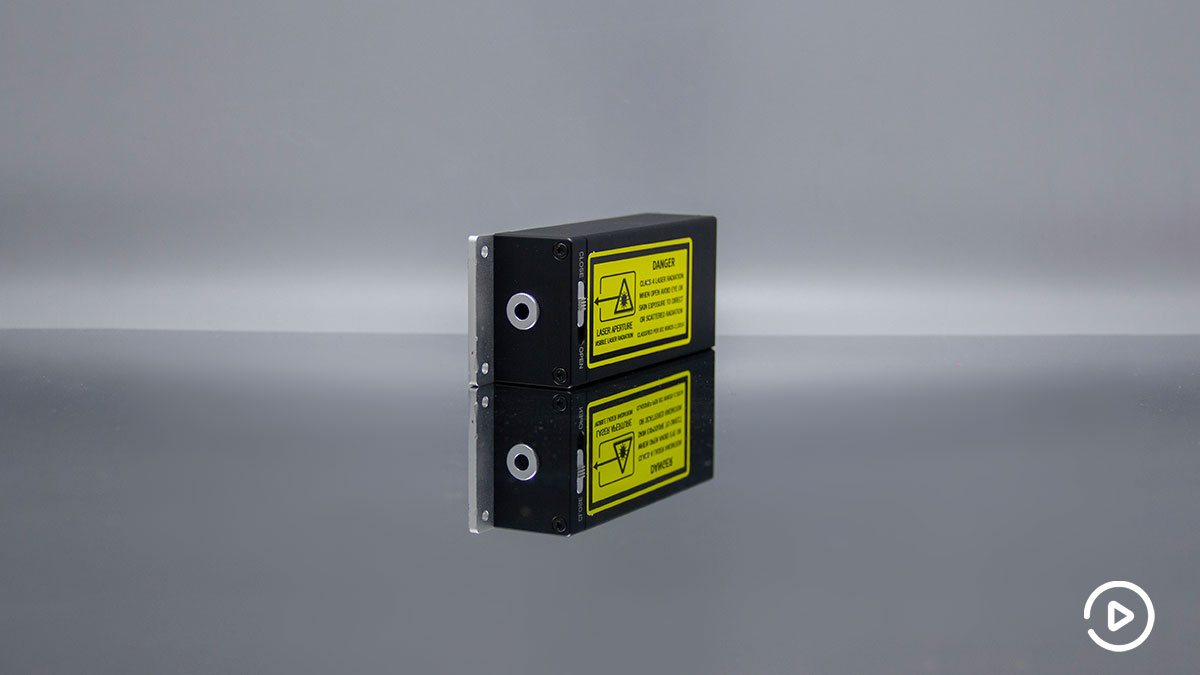

1030nm Microchip Laser System of MJ Series
MJ series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure without tail, the single pulse energy is stable and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include two wavelengths of 1030nm and 515nm. The fully sealed module inside the laser head can be used by customers for secondary development and application.
| Model | CL1030-1KHz-100μJ-MJ008 | CL1030-2KHz-80μJ-MJ009 |
| Wavelength(nm) | 1030 | |
| Repetition frequency (KHz) | 1 | 2 |
| Average power(mW) | 100 | 160 |
| Output energy(μJ) | 100 | 80 |
| Pulse width (ps) | 1000 | |
| Power stability (8h) | ±3% | |
| Beam mode | TEM00 | |
| Full-angle divergence angle Typ. (Mrad) level @1/e2 | 6 | 8 |
| Full-angle divergence angle Typ. (Mrad) Vertical @1/e2 | 6 | 8 |
| Polarization characteristics | ＞100:1 | |
| Power input | 100-240 VAC,50/60Hz | |
| Control interface | RS232、USB | |
| System power consumption（W） | ≤15 | ≤25 |
| Power supply size (W × H × L, mm) | 168×88×140 | |
| Laser head size (W × H × L, mm) | 45×30×120 | |
| Working temperature (℃) | 15-35 | |
| Storage temperature (℃) | 0-60 | |
- Pulse width up to 1ns
- Pulse energy up to 100μJ
- Repetition frequency up to 2kHz
- Beam mode is TEM00
- Material micromachining
- Spectrum detection
- Lidar
- Pump source
- Biomedical Science
1030-1080nm Single Frequency Fiber Laser
Single frequency fiber laser products are divided into single frequency continuous fiber laser and single frequency pulse fiber laser. After a long time of research and development and improvement, a unique product has been formed.
The single frequency continuous fiber laser series uses different types of low noise single frequency narrow linewidth laser as seed source, MOPA enlarges all fiber structure, through the optimization of engineering parameters of amplification stage, current noise suppression, high gain fiber nonlinear effect suppression, high power and low noise laser output is realized, maintaining the beam quality of high spectral signal-to-noise ratio and near diffraction limit. This series of products are widely used in laser coherent communication, atmospheric environment test, laser sensor, coherent synthesis and other test systems, with the following technical advantages:
- Low Rin value is helpful to improve the precision of laser sensing and coherent communication;
- High output power helps to improve the signal-to-noise ratio of atmospheric environment test
| Model | CL1030~1080-20W-SCFL001 | CL1030~1080-50W-SCFL002 | |
| Optical Parameter | Central Wavelength (nm) | 1030～1080 | 1030～1080 |
| Output Power (W) | ＞20 | ＞50 | |
| Power Stability | ＜1% | ＜2% | |
| Power Adjustable Range | 10%-100% | 10%-100% | |
| Beam Quality M2 | ＜1.2 | ＜1.2 | |
| Output Spectral Line Width (KHz) | ＜100 | ＜100 | |
| RIN Value (dB@1MHz) | ＜-140 | ＜-140 | |
| Polarization Extinction Ratio (dB) | ＞20 | ＞15 | |
| Function Parameter | output Method | FC/APC | QBH collimation |
| Control Interface | DB9，RS422 | DB9，RS422 | |
| Cooling Method | Air-cooled | Water cooling | |
| Powered By | 220VAC/50Hz | 220VAC/50Hz | |
| Output Power (W) | ＜300 | ＜300 | |
| Environmental Requirements | Operating Temperature | -5-40 | -5-40 |
| Storage Temperature | -10-60 | -10-60 | |
| Humidity | 0-80% | 0-80% | |
| Weight and Size | Laser Head Weight (Kg) | ＜30 | ＜30 |
| Power Weight (Kg) | Photoelectric integrated | ＜10 | |
| Laser Head Size (mm) | 451*353*123 | Customer settings | |
| Power Size | – | Customer settings | |
- Narrow line width, low noise
- All-fiber amplification structure
- Input and output safety protection lock function
- Simple operation and maintenance
- Laser coherence
- adaptive optics
- atmospheric environment detection
- laser sensing
- laser spectroscopy
