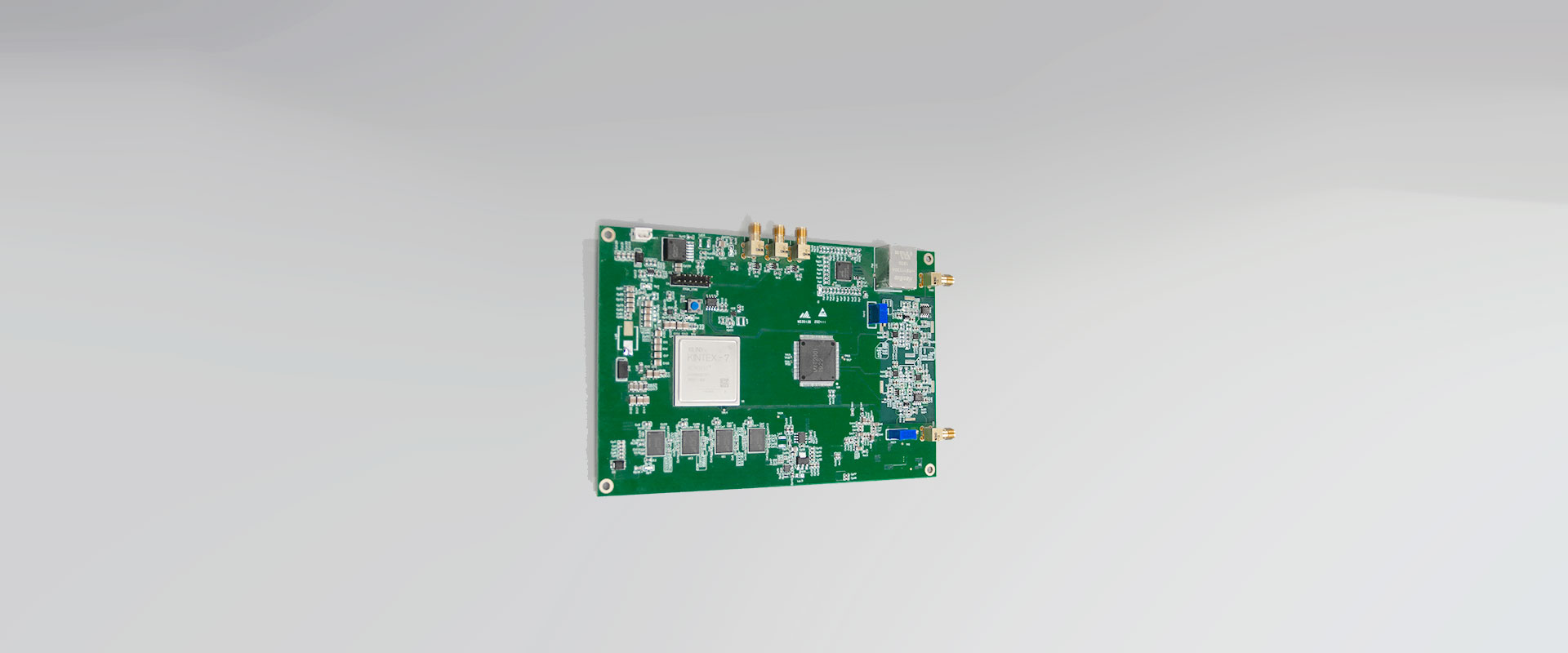

Photoelectric Detection Module

The electronics research and development team has 15 research and development engineers, 6 of whom have more than 5 years of laser electronics design experience. The team is young and passionate, with a rigorous and solid style and dare to challenge innovation. The team’s capabilities include hardware design, embedded software design, FPGA development, and host computer software development. It has rich technical accumulation, undertakes and completes a number of vertical and horizontal projects, and undertakes more than 20 projects per year on average. The project covers solid-state lasers, fiber lasers, and laser applications such as laser communications, laser wind measurement, and gas aerosol detection. Technical accumulation includes: high-precision, low noise, high power and other temperature control, LD drive technology; resonance detection, PDH, saturation absorption, MTS and other laser frequency stabilization technologies; PD, PMT, APD and other photoelectric detection technologies; laser system timing and Signal editing; data acquisition and processing; system integration.

  • Compact design for easy integration;
  • Multiple versions with different bands, high bandwidth, adjustable gain, and peak hold are available;
  • Accept customization.

High Speed Photodetector
High Speed Photosynchronous Detector
Narrow Pulse Peak Hold Detector
High Speed Photodetector

Wavelength range 200nm-1600nm
Gain Fixed or adjustable gain
bandwidth Fixed gain: DC-600MHz; adjustable gain: DC-150MHz
Rise Time Fixed gain: 1ns; adjustable gain: 7ns
Output impedance 50Ω

High Speed Photosynchronous Detector

Wavelength range 200nm-1600nm
Gain Fixed or adjustable gain
bandwidth Fixed gain: DC-600MHz; adjustable gain: DC-150MHz
output signal 3.3V@50Ω, rising edge is less than 2ns
Jiiter MAX is less than 500ps

Narrow Pulse Peak Hold Detector

Wavelength range 200nm-1600nm
Light pulse width More than 300ps
Gain Adjustable gain
Hold time More than 20us
Output impedance 50Ω
