213nm laser
The 213 nm laser of CRYLINK is a 213nm Microchip laser. These series of lasers are mainly used in seed source, laser ultrasonic testing, optical parametric oscillation pump source, micromachining, laser ionization mass spectrometer, laser-induced breakdown spectroscopy, radar ranging, and ultrasonic imaging.
213nm Microchip Laser System of MB Series
MB series microchip laser products have very ideal narrow pulse width, but also can achieve high single pulse energy. The product is a passive Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of the semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. The full sealing module inside the laser head can be used by customers for secondary development and application. The superior product performance index makes its application range very wide, especially in laser measurement, which can meet many different kinds of measurement needs, and also has an excellent performance in the application of laser seeds.
| Model | CL213-1KHz-4μJ-MB001 |
| Wavelength(nm) | 213 |
| Repetition frequency (KHz) | 1* |
| Average power(mW) | 4 |
| Output energy(uJ) | 4 |
| Pulse width (ps) | 500 |
| Power stability (8h) | ±3% |
| Beam mode | TEM00 |
| Full-angle divergence angle Typ. (Mrad) level @ 1/e2 | 4 |
| Vertical @ 1/e2 | 4 |
| Polarization characteristics | ＞100:1 |
| System power consumption（W） | ≤25 |
| Power input | 100-240 VAC,50/60Hz |
| Control interface | RS232、USB |

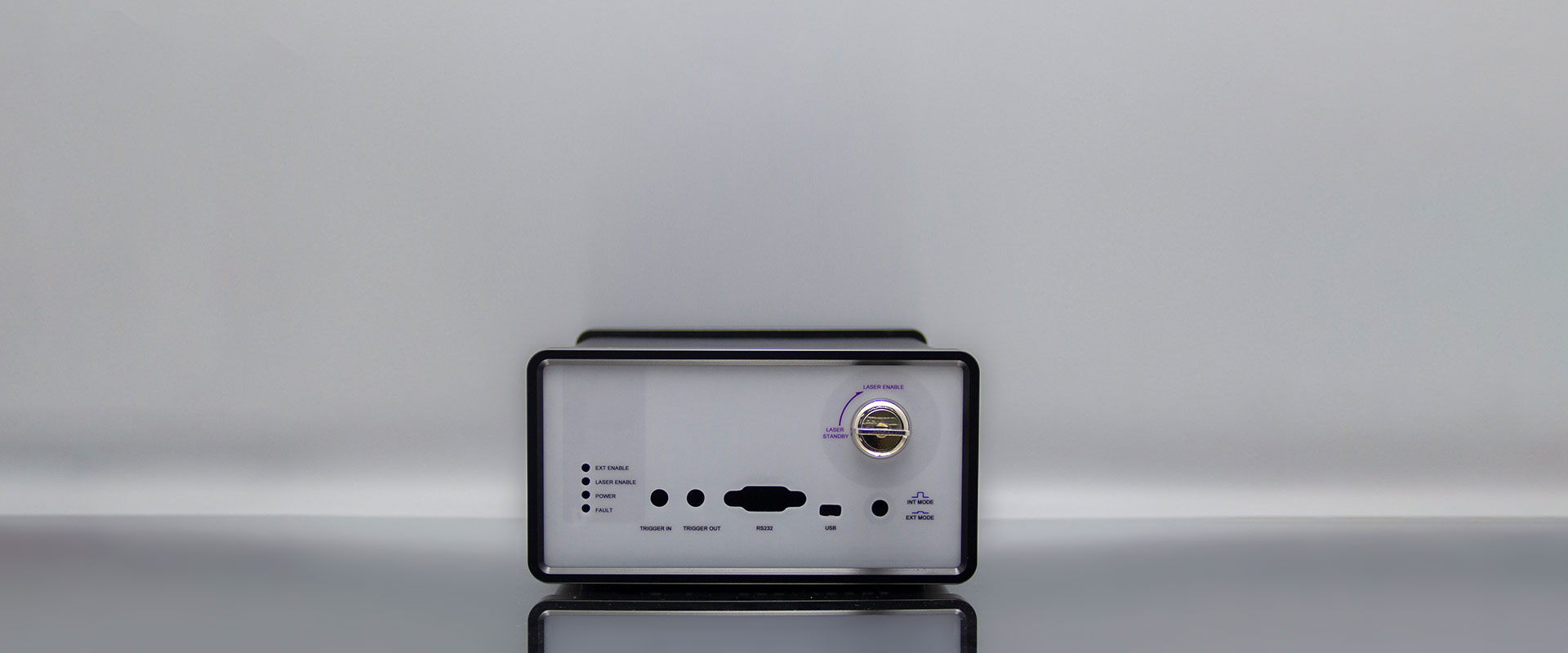

| Power supply size (W × H × L, mm) | 168×88×140 |
| Laser head size (W × H × L, mm) | 45×30×120 |
| Working temperature (℃) | 15-35 |
| Storage temperature (℃) | 0-60 |
| 1. *the light outlet of the laser head is side outlet. Please refer to the mechanical dimension drawing for details. 2. * * high PRF side light output structure, gated trigger, TTL 5V, SMA interface. Other structures are rising edges | |
- Pulse energy up to 400μJ
- Fully sealed design, high reliability
- The beam mode is TEM00
- High polarization direction stability
- Seed source
- Laser ultrasonic testin
- Optical parametric oscillation pump source
- Micromachining
- Laser ionization mass spectrometry
- Laser induced breakdown spectroscopy
