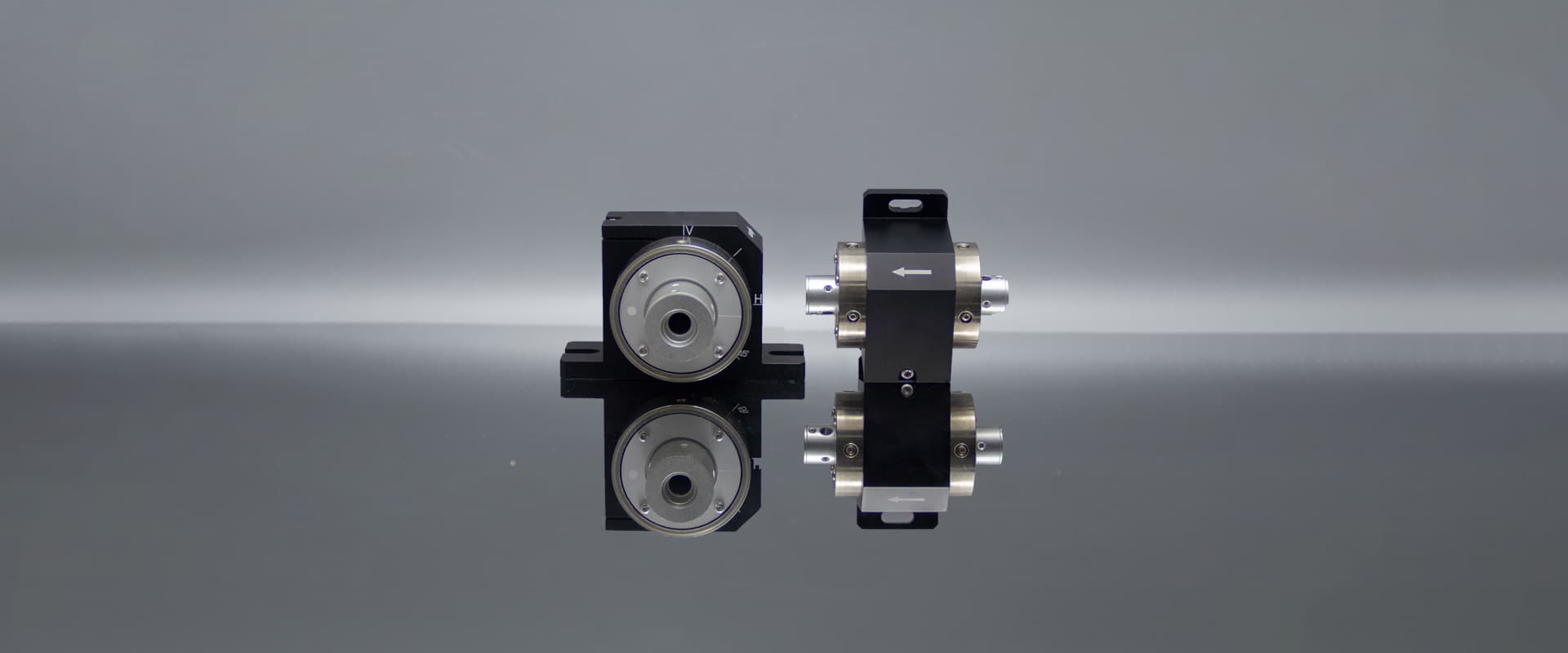

Polarizer and Isolator

Faraday rotator is a kind of magneto-optical device based on Faraday magneto-optical effect. It can rotate the polarization direction of the polarized light into a certain angle, and the rotation direction is only related to the internal magnetic field, and has nothing to do with the light direction. The rotation angle of common Faraday rotators is designed as 45˚ or 90˚. A 45˚ polarizer is placed between two polarizers in a 45˚ configuration to form an optical isolator. Optical isolator is a kind of magneto-optical device with unidirectional light transmission, which is widely used in laser amplification system, film-locked laser and laser measurement equipment.

Our company has independently developed and produced a series of polarizers and isolators, which are made of high-quality terbium gallium garnet (TGG) magneto-optical crystal, polarizing spectroprism and high coercive magnetic materials, so as to ensure that the series products have the highest isolation, transmittance, laser damage threshold resistance and temperature application range.

Our company has professional magneto-optical device design technology and strong OEM production capacity. We can provide non-standard isolators with different path, wavelength and package size. We can also supply our sub nanosecond microchip laser and semiconductor laser series products to provide users with complete system design and application services.


Isolator PDF


Rotator PDF

Technical parameters (25℃)

Isolator

Center
Wavelength
Model Clear
Aperture
Isolation Extinction
Ratio
Polarizer Damage
Threshold @10ns
Package
Form
405nm CL405-2.5-OI001 2.5mm >30dB >85% PBS Cube 3.5J/cm2 1#
CL405-5-OI002 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
532nm CL532-2.5-OI003 2.5mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL532-5-OI004 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
561nm CL561-2.5-OI005 2.5mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL561-5-OI006 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
633nm CL633-2.5-OI007 2.5mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL633-5-OI008 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
650nm CL650-2.5-OI009 2.5mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL650-5-OI010 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
670nm CL670-2.5-OI011 2.5mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL670-5-OI012 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
780nm CL780-2.5-OI013 2.5mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL780-5-OI014 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
795nm CL795-2.5-OI015 2.5mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL795-5-OI016 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
830nm CL830-2-OI017 2mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL830-5-OI018 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
850nm CL850-2-OI019 2mm >30dB >90% PBS Cube 3.5J/cm2 1#
CL850-5-OI020 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
895nm CL895-5-OI021 5mm >30dB >90% PBS Cube 3.5J/cm2 2#
980nm CL980-5-OI022 5mm >30dB >90% PBS Cube 3.5J/cm2 3#
1030 CL1030-2.5-OI023 2.5mm >30dB >90% PBS Cube 5J/cm2 3#
CL1030-5-OI024 5mm 3#
CL1030-8-OI025 8mm 4#
CL1030-10-OI026 10mm 4#
1064 CL1064-2.5-OI027 2.5mm >30dB >90% PBS Cube 5J/cm2 3#
CL1064-5-OI028 5mm 3#
CL1064-8-OI029 8mm 4#
CL1064-10-OI030 10mm 4#

polarizer

Center
Wavelength
Model Clear
Aperture
Rotation
Angle
Extinction
Ratio
Transmittance Damage
Threshold @10ns
Package
Form
405nm CL405-2.5-FP001 2.5mm 45˚±1˚ >30dB >90% 3.5J/cm2 1#
CL405-5-FP002 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
532nm CL532-2.5-FP003 2.5mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL532-5-FP004 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
561nm CL561-2.5-FP005 2.5mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL561-5-FP006 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
633nm CL633-2.5-FP007 2.5mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL633-5-FP008 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
650nm CL650-2.5-FP009 2.5mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL650-5-FP010 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
670nm CL670-2.5-FP011 2.5mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL670-5-FP012 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
780nm CL780-2.5-FP013 2.5mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL780-5-FP014 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
795nm CL795-2.5-FP015 2.5mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL795-5-FP016 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
830nm CL830-2-FP017 2mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL830-5-FP018 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
850nm CL850-2-FP019 2mm 45˚±1˚ >30dB >95% 3.5J/cm2 1#
CL850-5-FP020 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
895nm CL895-5-FP021 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 2#
980nm CL980-5-FP022 5mm 45˚±1˚ >30dB >95% 3.5J/cm2 3#
1030nm CL1030-2.5-FP023 2.5mm 45˚±1˚ >30dB >95% 5J/cm2 3#
CL1030-5-FP024 5mm 45˚±1˚ >30dB >95% 5J/cm2 3#
CL1030-8-FP025 8mm 45˚±1˚ >30dB >95% 5J/cm2 4#
CL1030-10-FP026 10mm 45˚±1˚ >30dB >95% 5J/cm2 4#
1064nm CL1064-2.5-FP027 2.5mm 45˚±1˚ >30dB >95% 5J/cm2 3#
CL1064-5-FP028 5mm 45˚±1˚ >30dB >95% 5J/cm2 3#
CL1064-8-FP029 8mm 45˚±1˚ >30dB >95% 5J/cm2 4#
CL1064-10-FP030 10mm 45˚±1˚ >30dB >95% 5J/cm2 4#

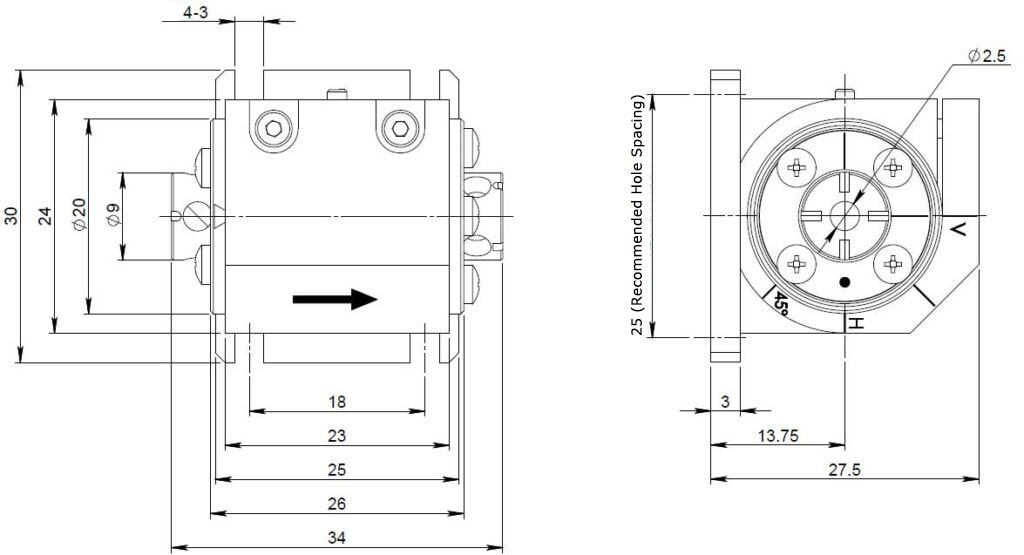

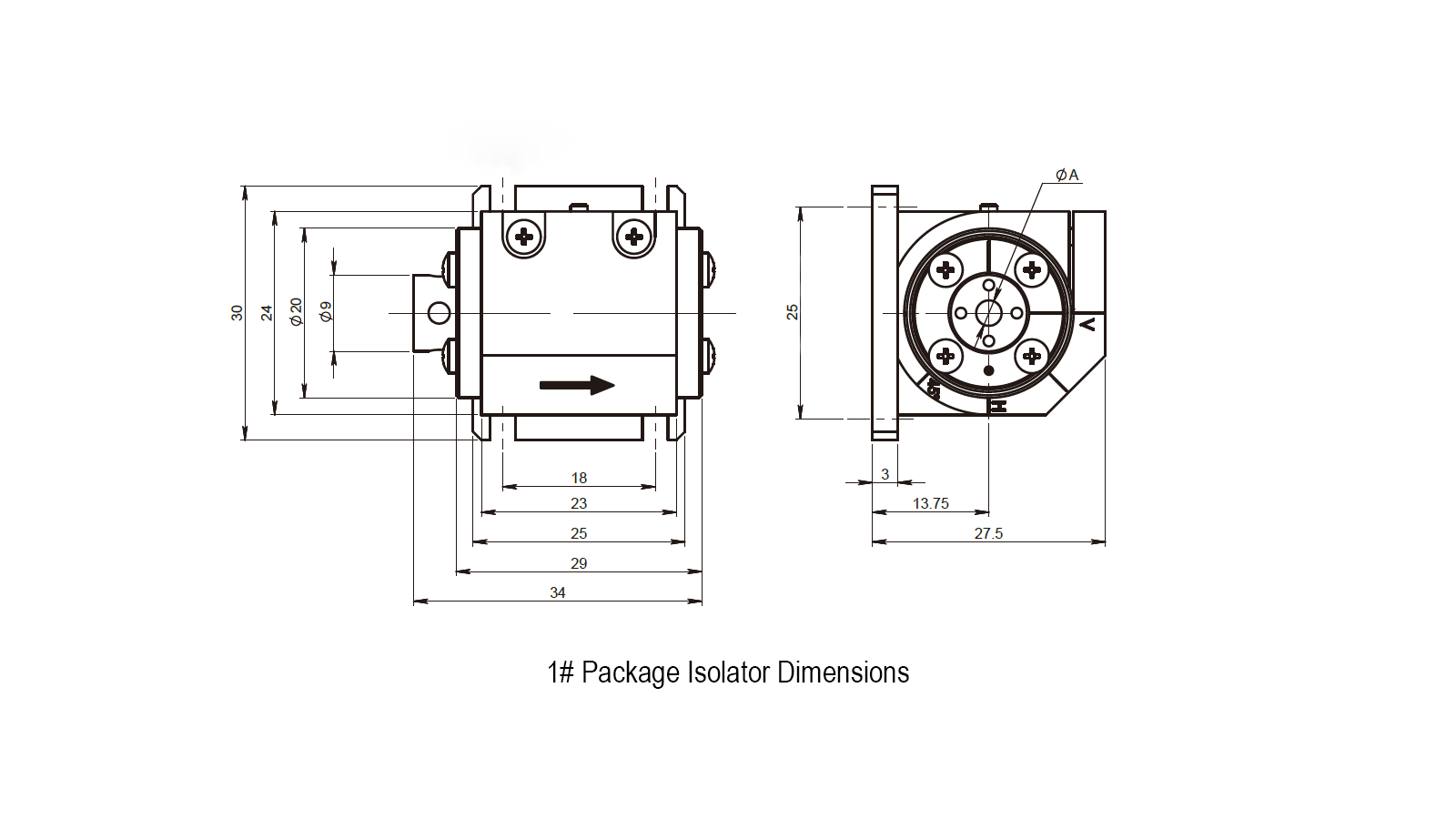

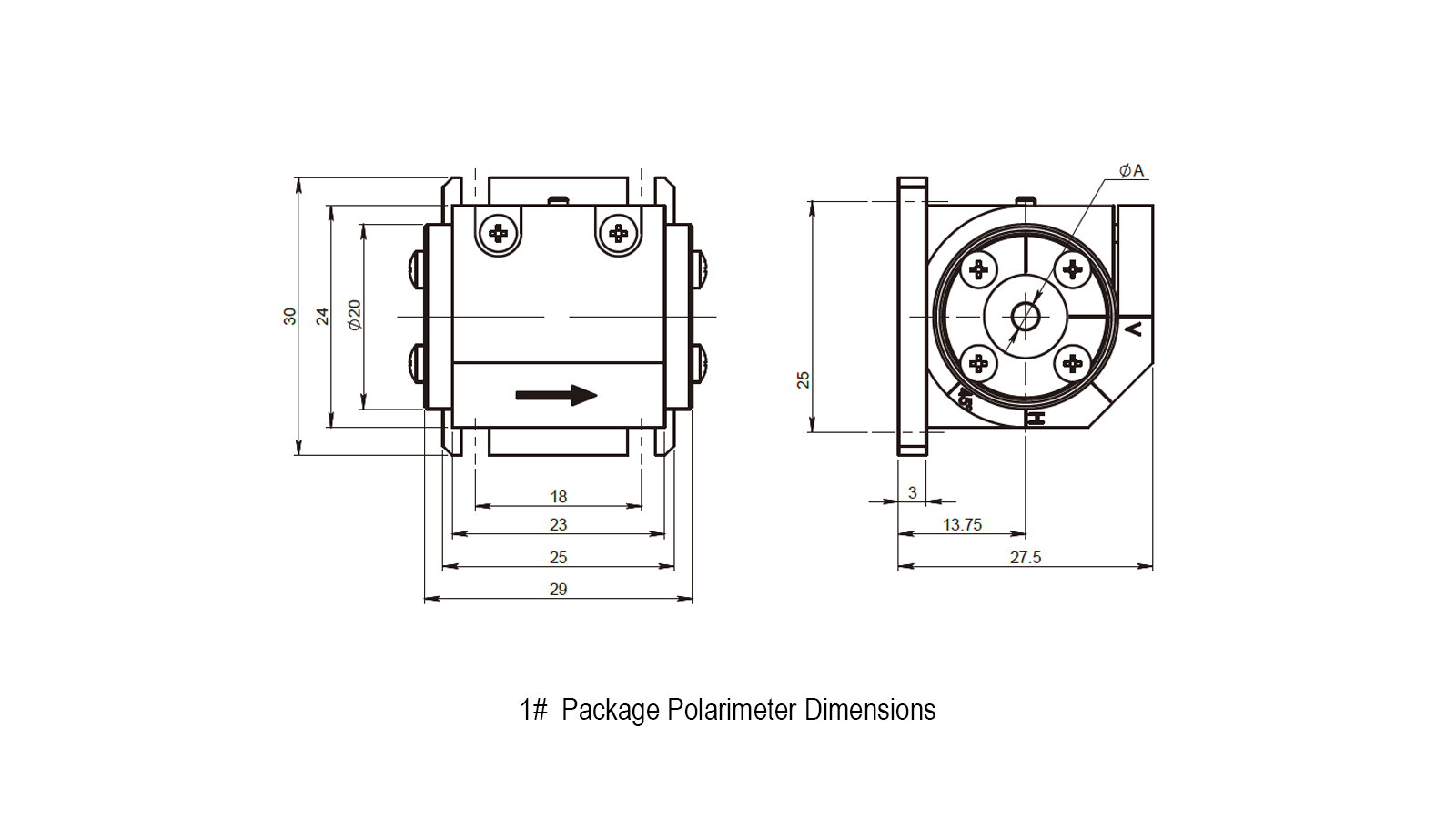

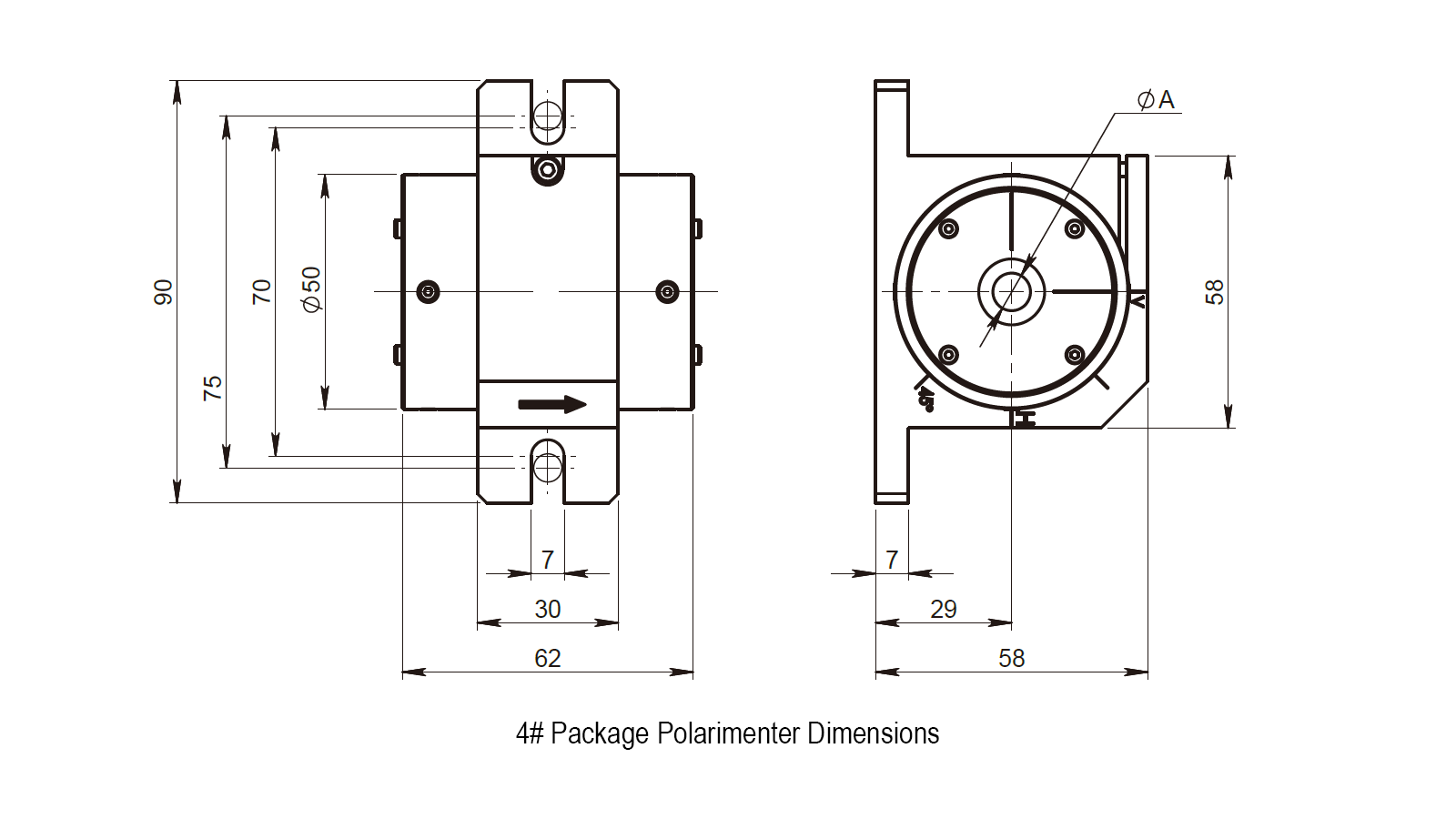

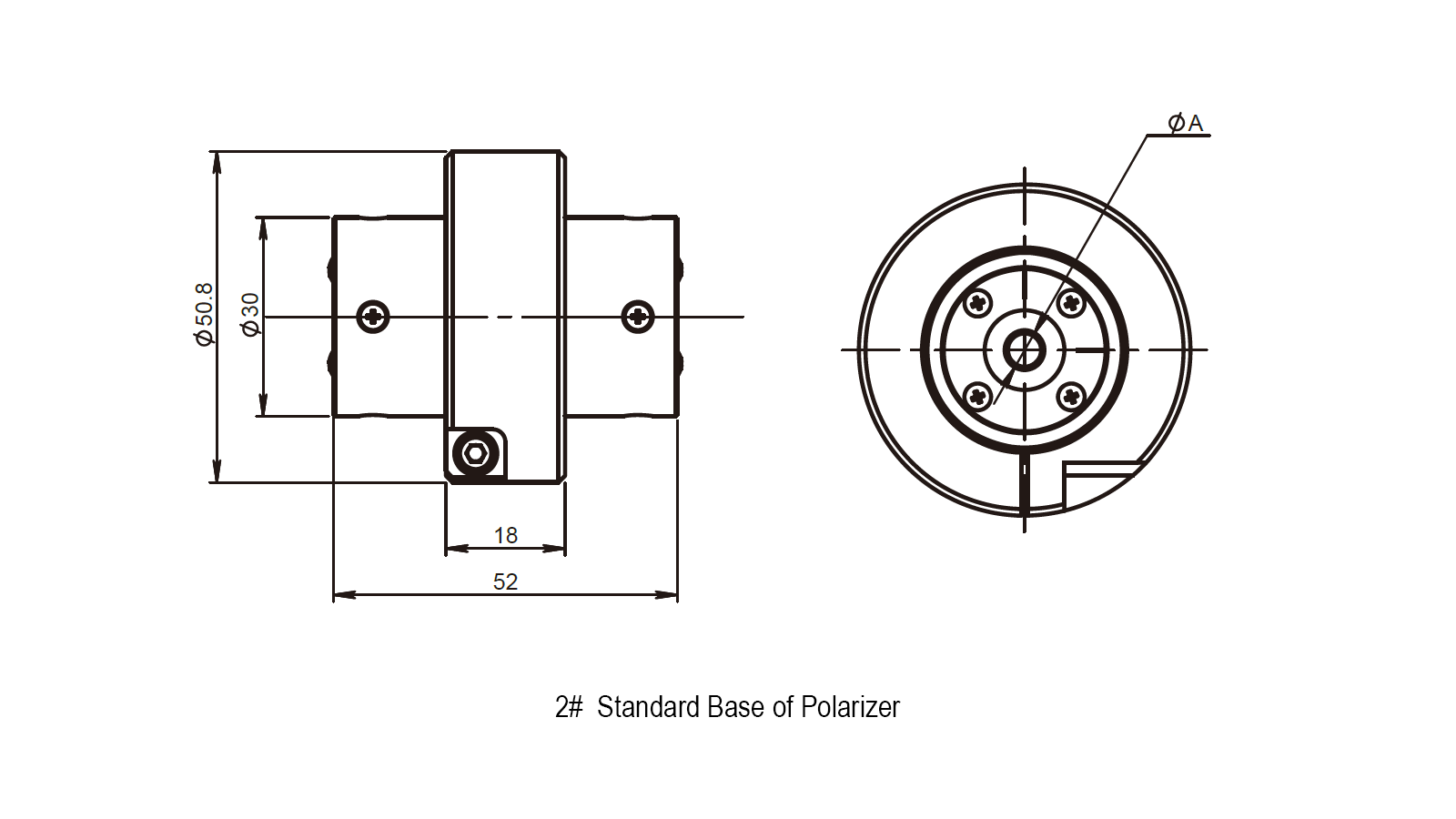

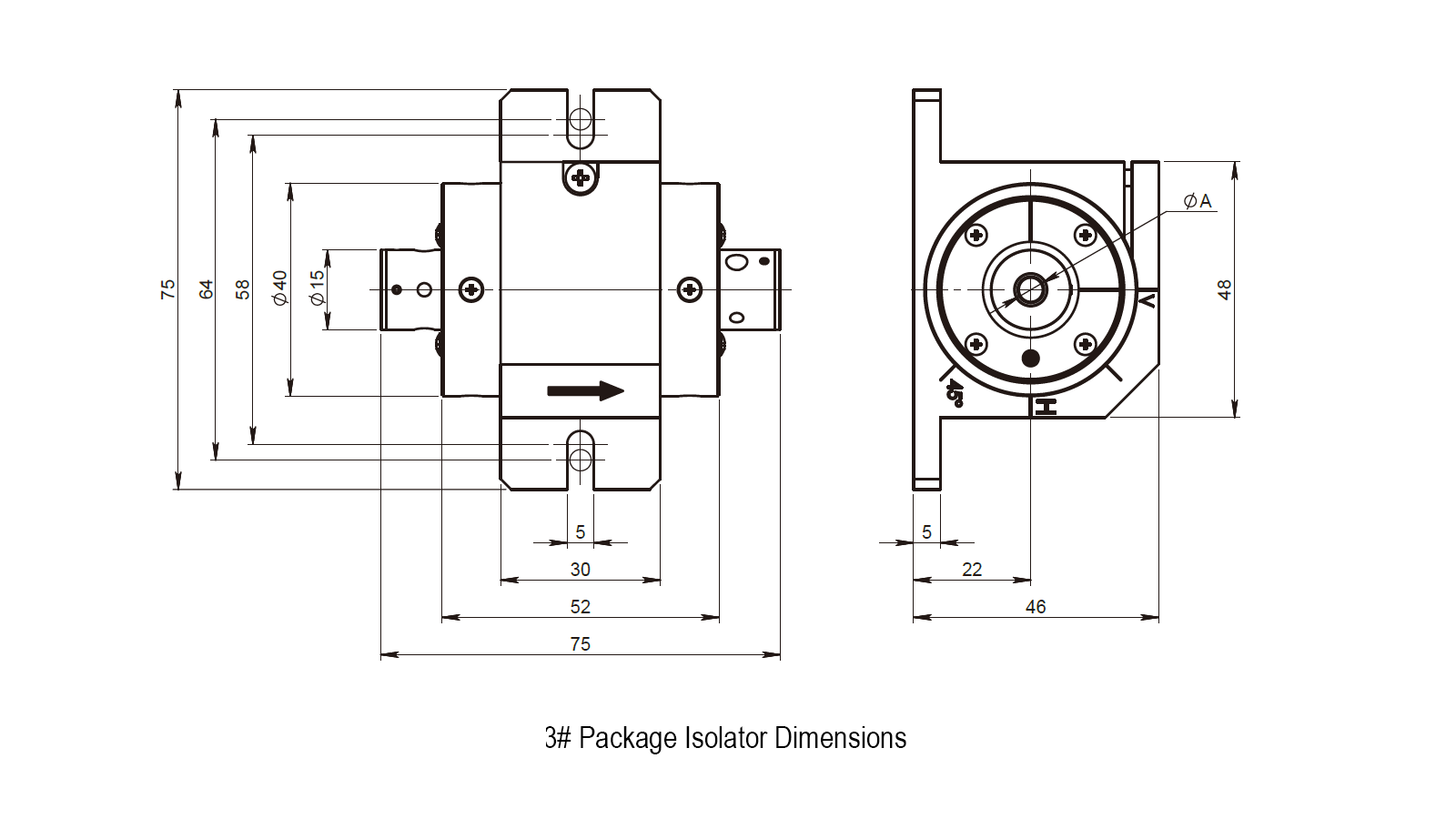

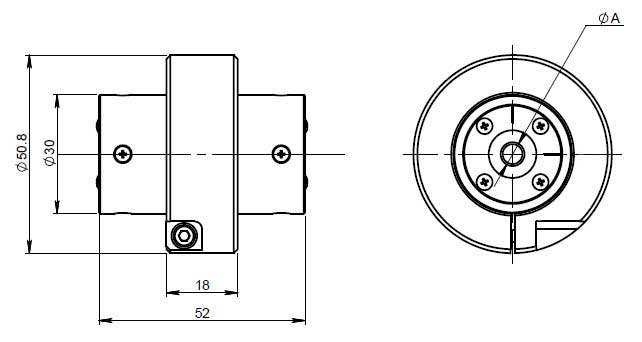

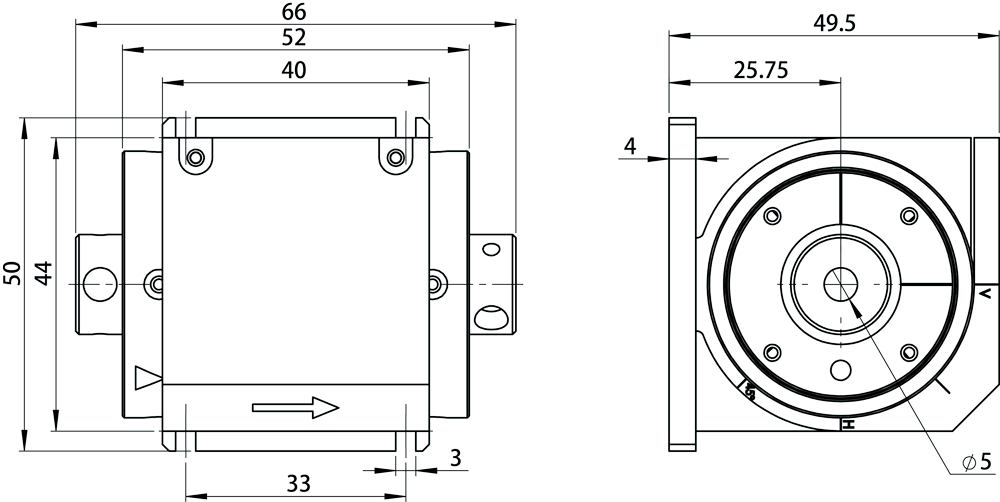

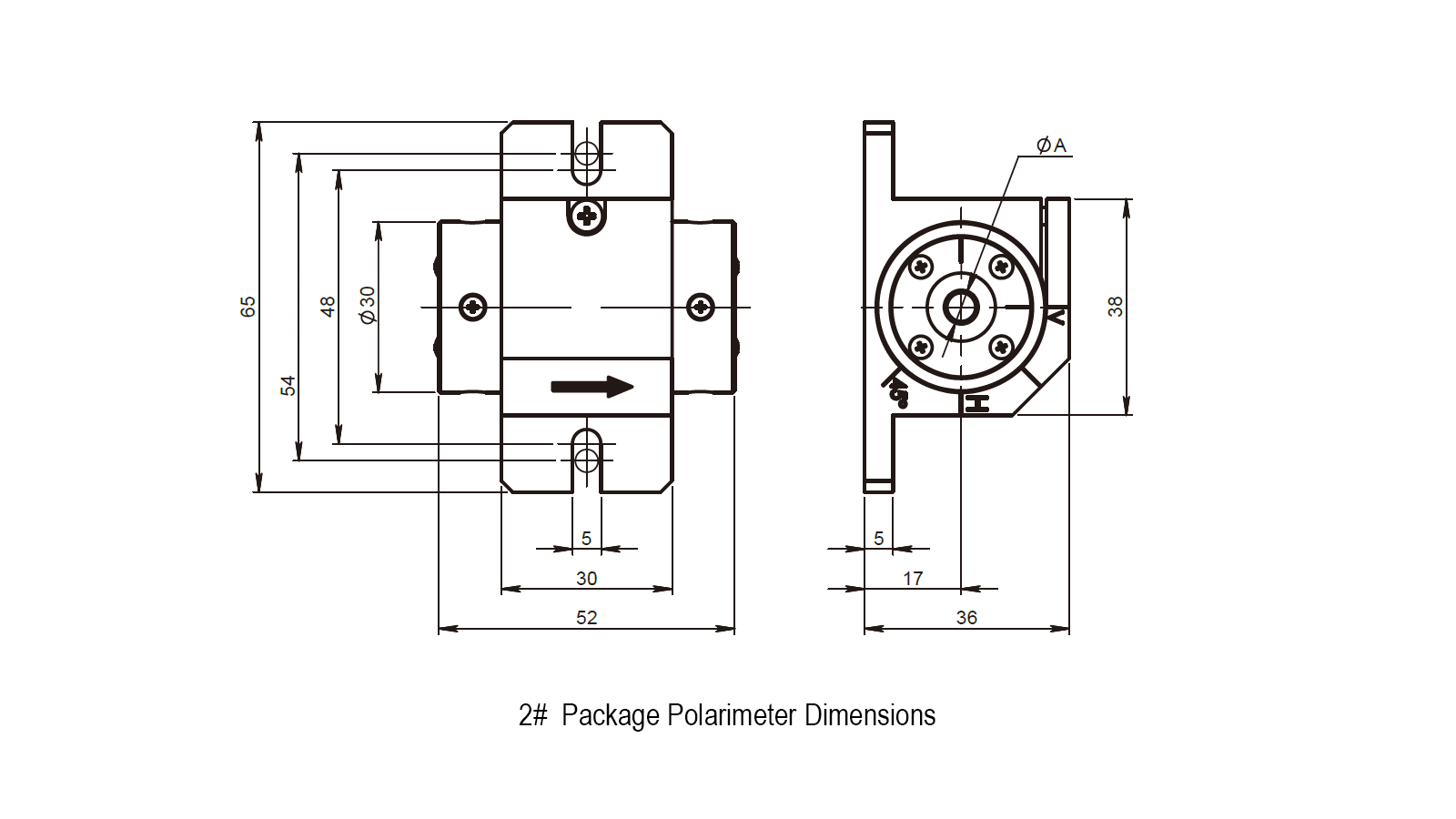

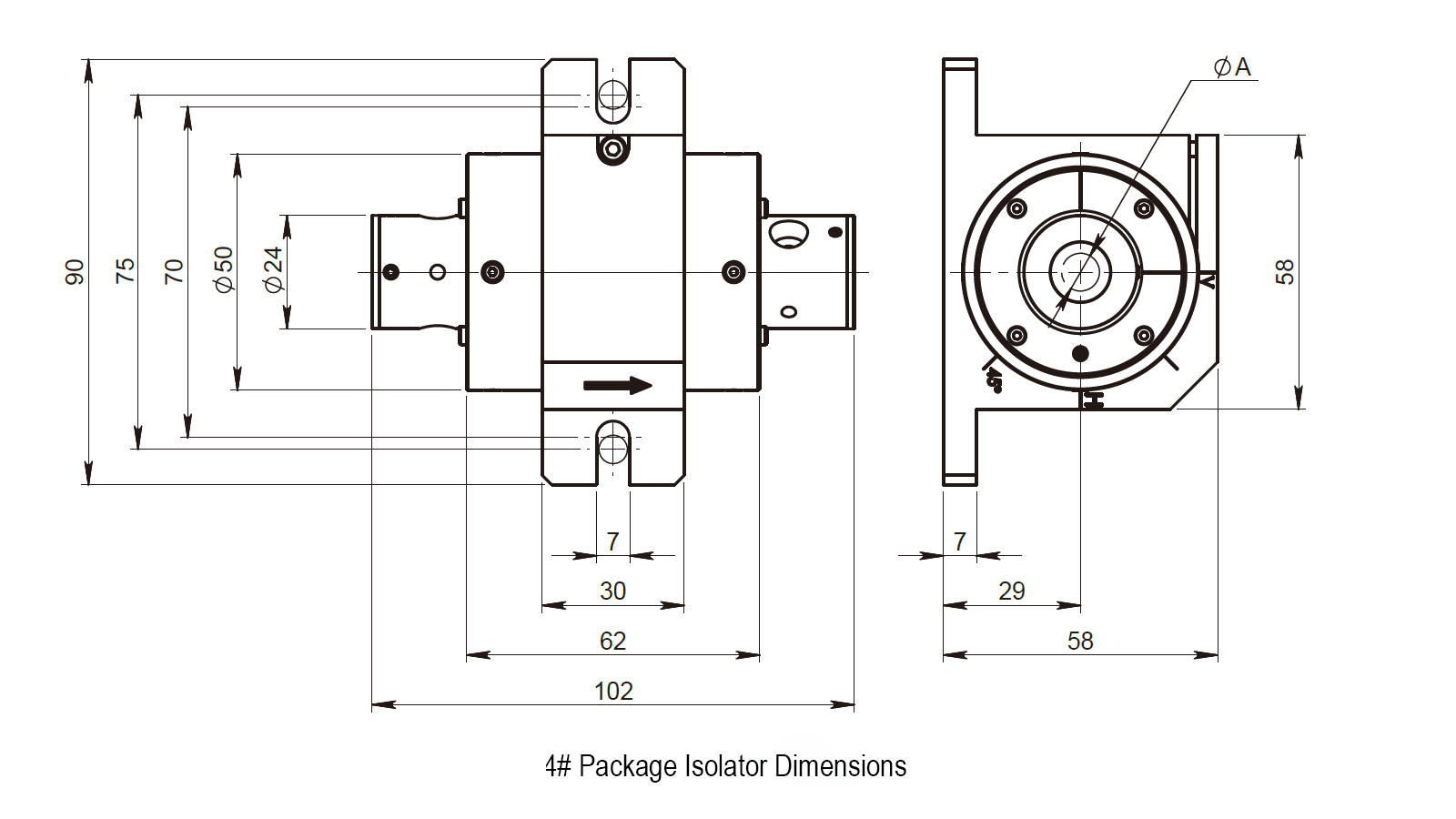

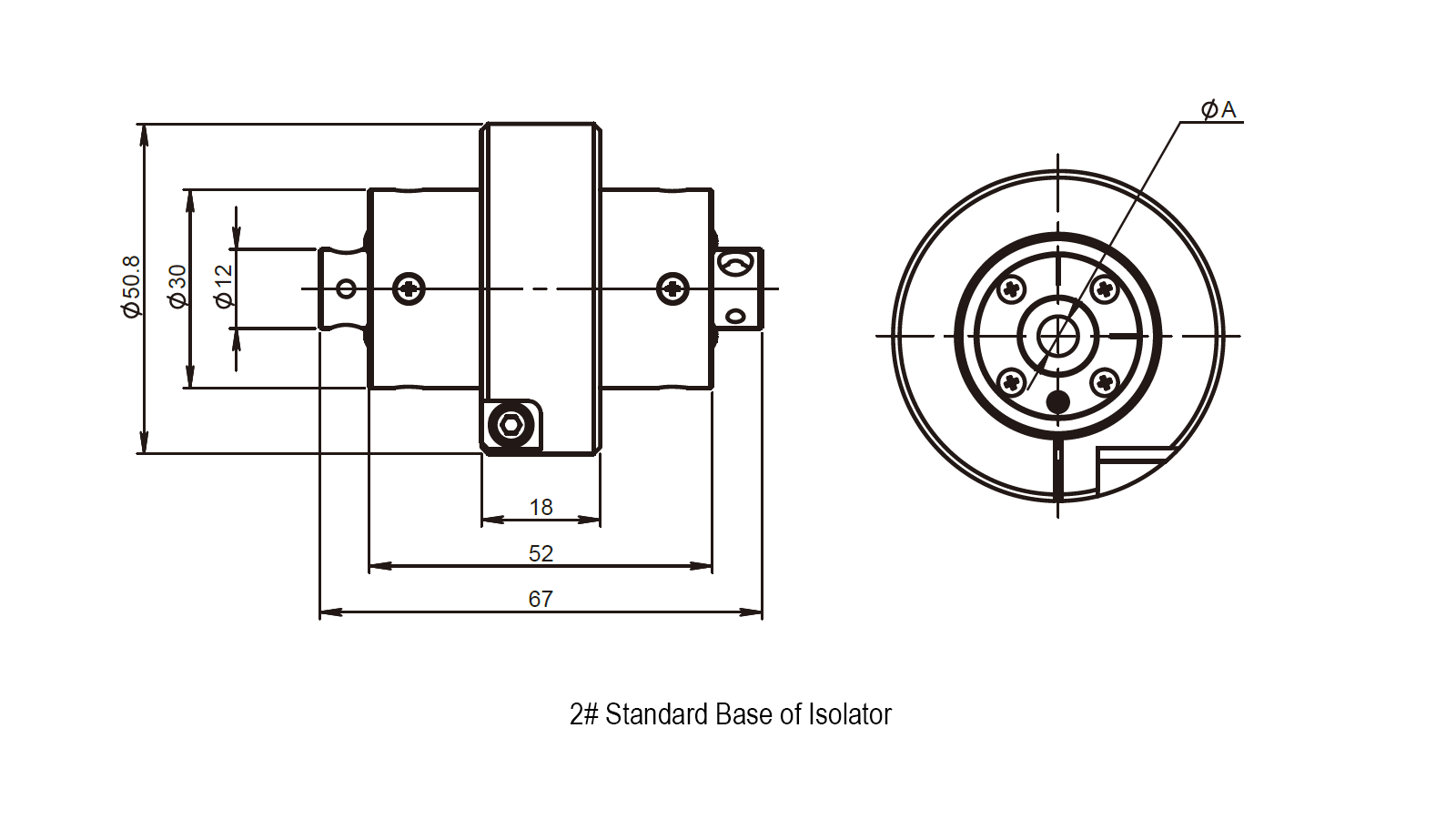

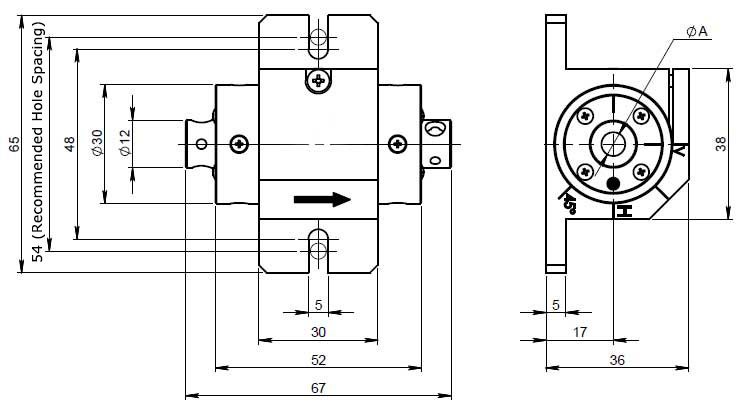

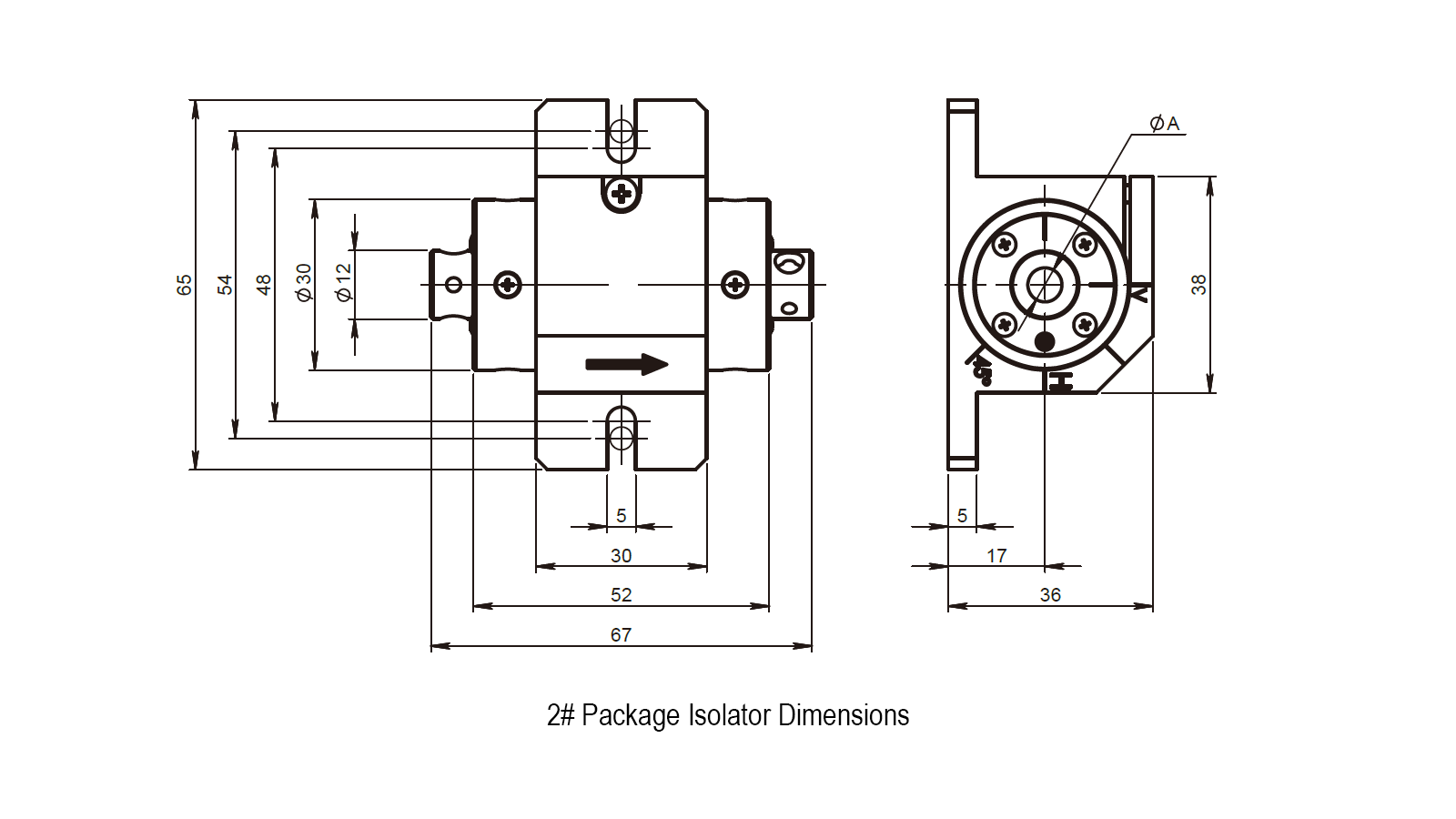

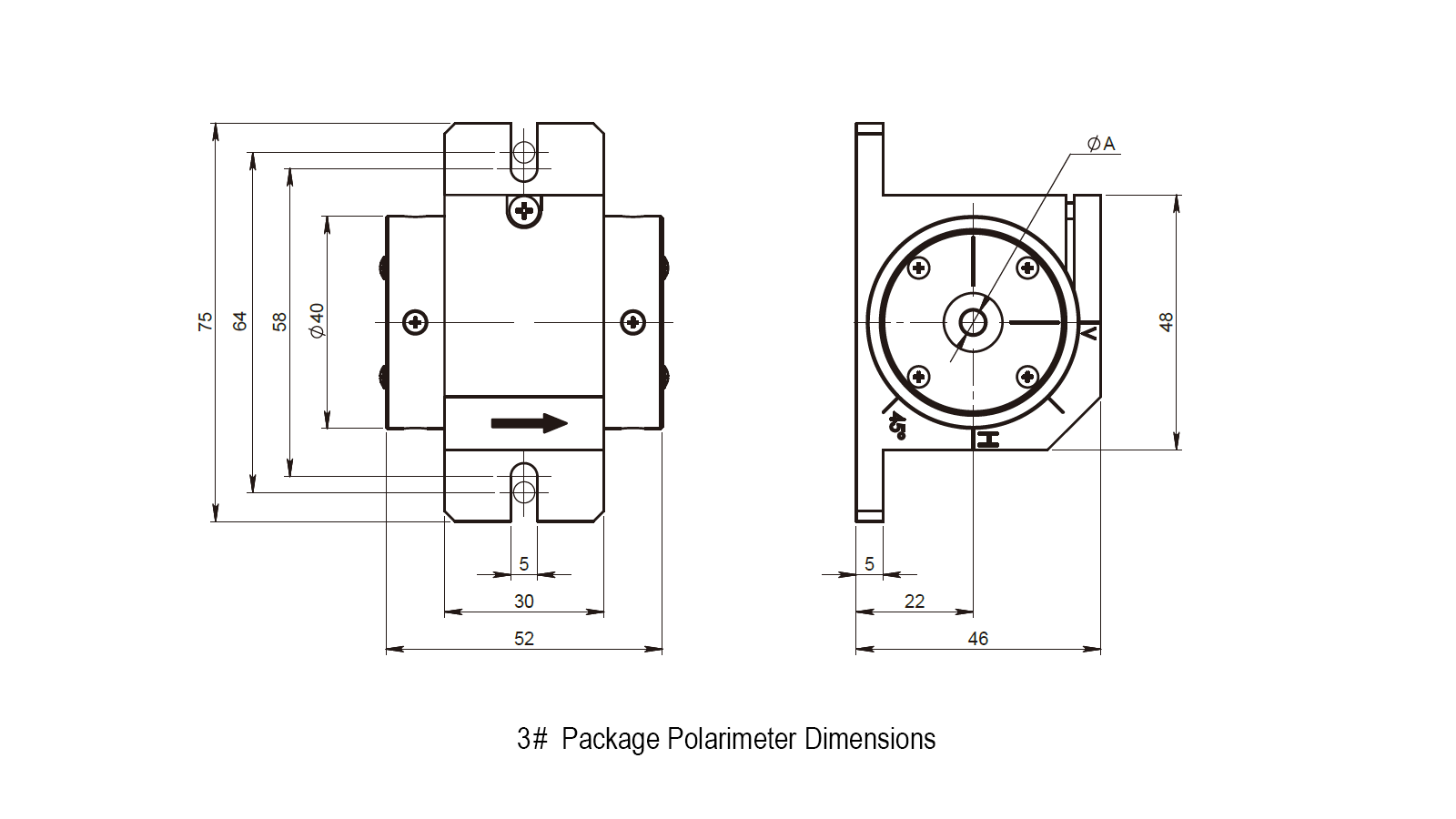

Mechanical dimension drawing

polarizer

Isolator

Feature
Application
Feature

  • High isolation
  • Low insertion loss
  • Multiple clear apertures
  • Double escape windows at both ends
  • Multiple wavelengths available
  • Practicality of a certain wavelength bandwidth
  • Output polarization controllable

Application

  • Seed light amplifying laser
  • Lock film laser
  • A semiconductor laser
  • Optical measuring equipment
  • Optical parametric oscillator
