Home » 633nm Narrow Line Width Laser

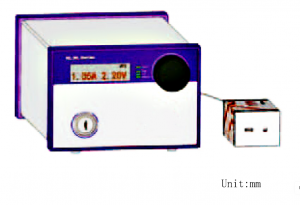

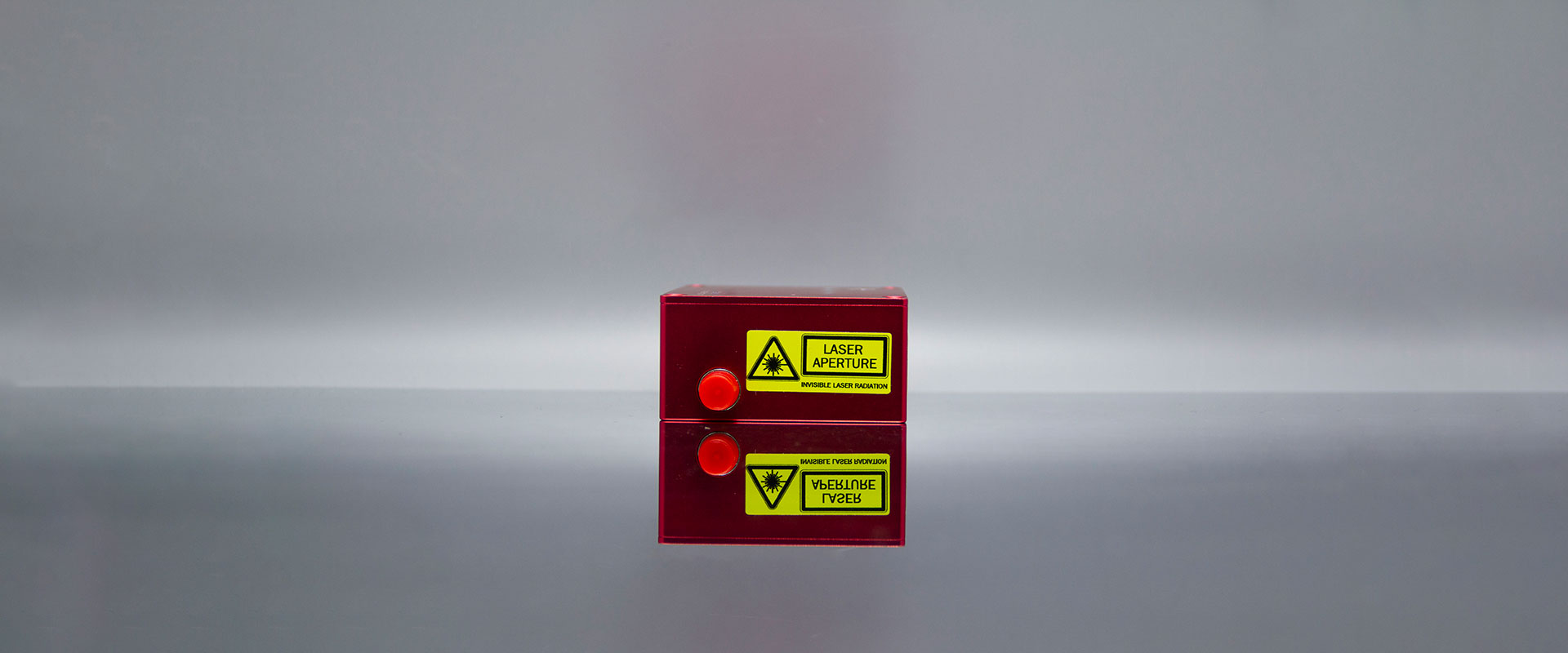

633nm Narrow Line Width Laser

633nm is one of the most widely used standard wavelengths at present. The 633nm narrow linewidth semiconductor laser system introduced by our company adopts the volume Bragg grating (VBG) wave locking technology, which enables the semiconductor laser to achieve narrow linewidth and stable power output. It can replace the traditional He Ne exciter in many fields. At the same time, compared with the He Ne laser, it has the advantages of compact structure and continuously adjustable power, Two output modes, spatial collimation and fiber coupling, can be provided.

Download PDF
Inquiry

Parameter

Optical Parameter
 CL633-SIF(FP)-20mW-NLM003CL633-MIF(FP)-50mW-NLM004CL633-SOW-50mW-NLM005
Central Wavelength633nm
Output Power20mW(Single mode)50mW(Multimode)50mW(Multimode)
Wavelength
Tolerance
±0.5nm
Line Width< 0.1nm
Wavelength Stability±0.005nm @8H Typ.

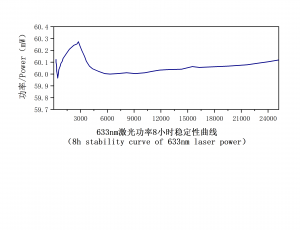

Power Stability±1% @8H Typ.
Side Mode
Rejection Ratio
40dB
Spot Diameter//1.3ⅹ0.7
Beam Divergence
Angle (mrad)
//<1.5
System Parameters
 CL633-SIF(FP)-20mW-NLM003CL633-MIF(FP)-50mW-NLM004CL633-SOW-50mW-NLM005
Power Adjustment
Range
0~100%
Preheat Time15min
Modulation Input1kHz TTL Or Analog signal0-5V
Control InterfaceUSB,BNC
Fiber InterfaceFC/PCFC/PCSpatial output
Adaptive Optical Fiber105µm,0.22NA105µm,0.22NA/
Power Input100V-240VAC 50/60Hz
System Power
Consumption
<7W
Storage Temperature-10~60℃
Storage Humidity0~80%RH
Operating
Temperature
10~35℃
System Weight2.2Kg
Laser Power Size150ⅹ102ⅹ200mm
Laser Head Size 45ⅹ35ⅹ70mm

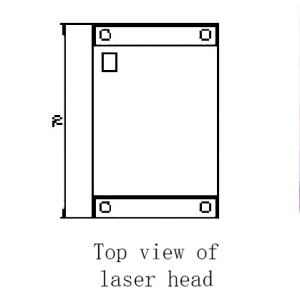

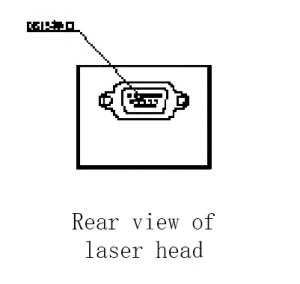

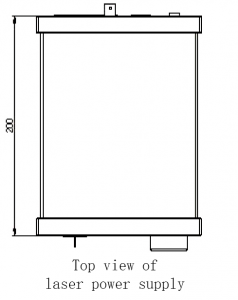

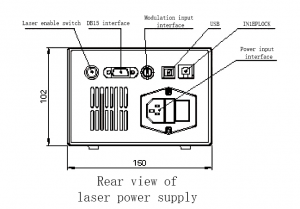

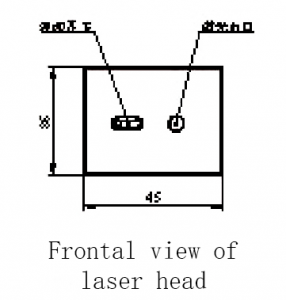

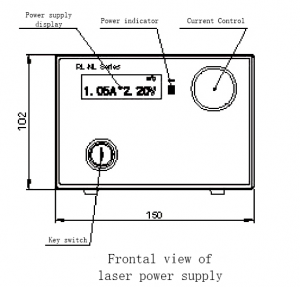

Laser Head Size Chart
Characteristics of 633nm Narrow Linewidth Laser System

Feature
Application
Feature
  • Line width <0.07nm
  • Frequency stability better than ±0.005nm@8H
  • Temperature drift<0.007nm/℃
  • Built-in TEC, power stability is better than ± 1%
  • Including host computer control, emergency stop switch, short circuit protection and other functions
Application
  • Confocal Microscopy
  • Fluorescence Spectrum Detection
  • Raman Spectrum Detection
  • Particle Size Detection
  • He-Ne Laser Replacement
