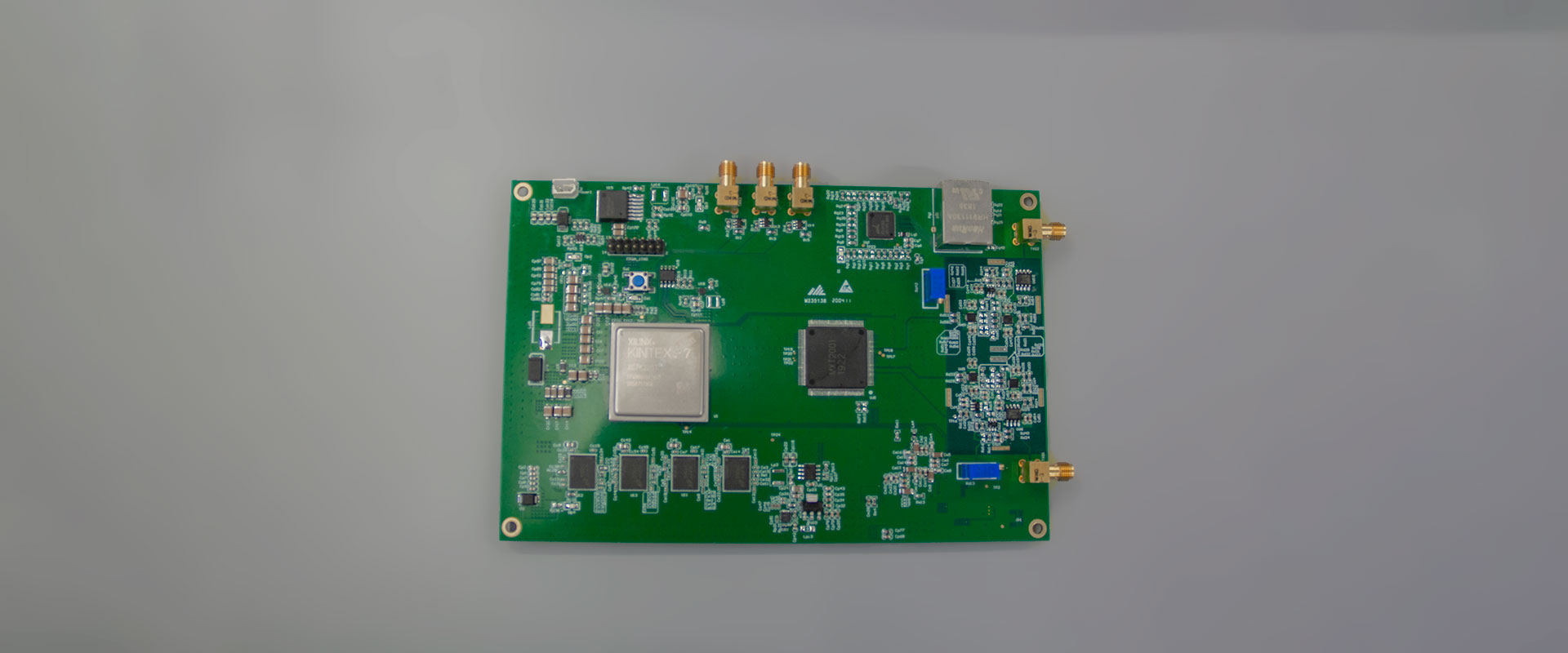

1Gsps Data Collection Module
400Msps Data Collection Module
1Gsps Data Collection Module

Bandwidth 1GHz
Acquisition channel SMA interface, 50Ω impedance
Collection range 870mVpp,Optional attenuator
Resolution 8bit
Trigger method Internal trigger, external trigger
Single sample depth 0- 16777216(24bit)adjustable
On-board cache 1GB
Data transmission interface Hundred Trillion/Gigabit Ethernet port
Powered by 12VDC,1A

Features

  • Compact design and expandable;
  • Provide supporting software for easy use and secondary development;
  •  The internal integrated high stable clock (0.2ppm), high-speed ADC (400MSPS / 1GMSPS), the bit width is 8bit, 12bit, 14bit optional.
  • 1GB on-board buffer, single sampling depth adjustable, support external trigger and internal trigger;
  • Support 100M / Gigabit network port;
  • Accept customization.

400Msps Data Collection Module

Bandwidth 400MHz
Acquisition channel SMA interface, 50Ω impedance
Collection range 2.2Vpp,Optional attenuator
Resolution 14bit/12bit
Trigger method Internal trigger, external trigger
Single sample depth 0- 16777216(24bit adjustable
On-board cache 1GB
Data transmission interface Hundred Trillion/Gigabit Ethernet port
Powered by 12VDC,1A

Features

  • Compact design and expandable;
  • Provide supporting software and open communication interface for easy use and secondary development;
  • The temperature control accuracy is stable, and the digital temperature control accuracy can reach ± 0.0025 ℃;
  • Accept customization
