237nm laser
The 237 nm laser of CRYLINK is a 237nm Microchip laser. These series of lasers are mainly used in laser-induced fluorescence, ultrasonic testing, radar ranging, and Raman spectroscopic detection.
237nm Microchip Laser System of MI Series
MI series microlaser is a passive Q-switched solid-state laser wu device based on a semiconductor pump. This series of products adopt the integrated design of a semiconductor pump module and laser crystal, the laser head is compact and compact, easy to install, support internal and external trigger, has single pulse energy stability, and has good beam quality. The superior product performance index makes it widely used in the radar ranging, spectrum detection market.
| Model | CL237-1kHz-2μJ-MI001 | |
| Optical parameter | Wavelength (nm) | 237 |
| Repetition frequency (kHz) | 1* | |
| Average power (mW) | 1* | |
| Output energy(μJ) | 2 | |
| Pulse width (ps) | 1500 | |
| Power stability (8h) | ±3% | |
| Beam mode | TEM00 | |
| Full-angle divergence angle Typ. (Mrad) level @1/e2 | 6 | |
| Vertical @1/e2 | 6 | |
| Polarization characteristics | ＞100:1 | |
| System parameters | System power consumption（W) | ≤25 |
| Power input | 100-240 VAC,50/60Hz | |
| Control interface | RS232、USB | |

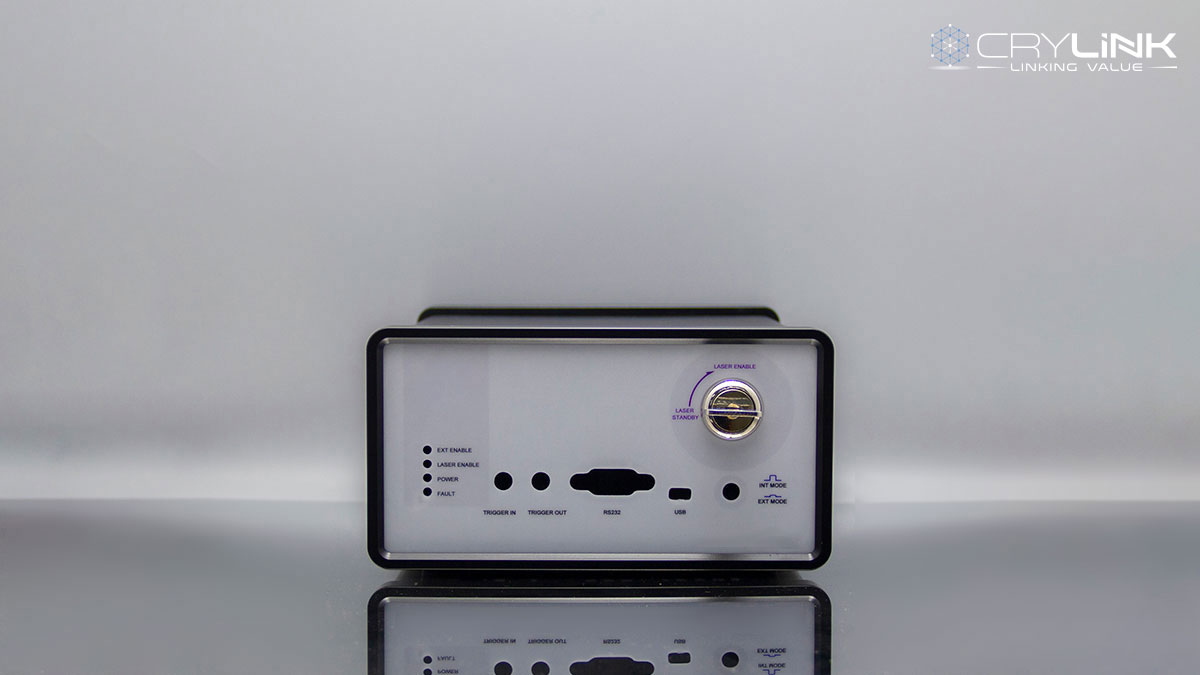

| Power supply size (W×H×L, mm) | 168×88×140 | |
| Laser head size (W×H×L, mm) | 45×30×120 | |
| Working temperature (℃) | 15-35 | |
| Storage temperature (℃) | 0-60 | |
| 1.*The light outlet of the laser head is side outlet. See the mechanical dimension drawing for details | ||
| 2.Customized internal beam expansion function to meet the requirements of small divergence angle (less than 2mrad) | ||
- Compact structure and high stability
- High polarization direction stability
- Repetition rate up to 5KHz
- Beam mode is TEM00
- Laser induced fluorescence
- Ultrasonic testing
- Radar ranging
- Raman spectroscopic detection
