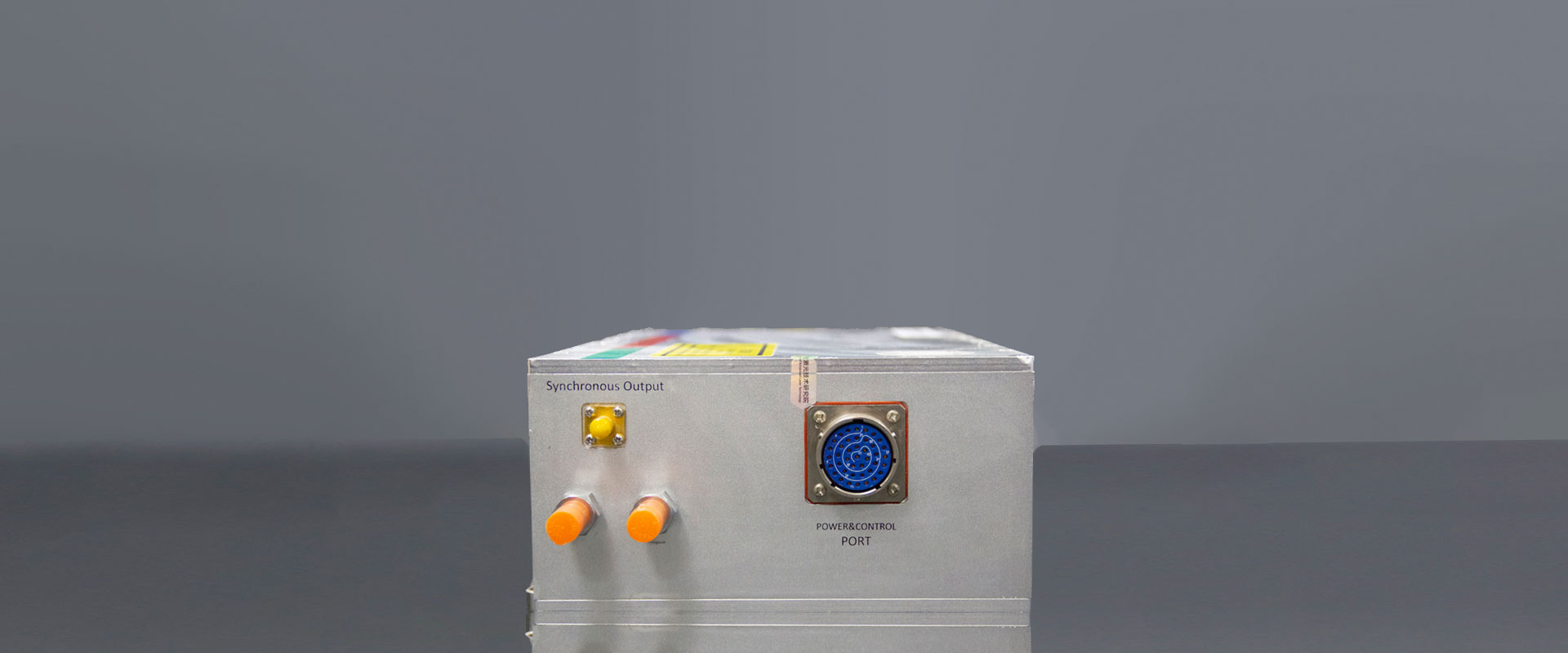

1730nm Laser For Photoacoustic Imaging

Photoacoustic imaging (PAI) is a new non-invasive and non ionizing biomedical imaging method developed in recent years. When the pulse laser irradiates the biological tissue, the light absorption domain of the tissue will produce the ultrasonic signal. The light acoustic signal generated by the biological tissue carries the light absorption characteristic information of the tissue. By detecting the light acoustic signal, the light absorption distribution image in the tissue can be reconstructed. It can break through the “soft limit” (~ 1 mm) of high-resolution optical imaging depth and realize the imaging of 50 mm deep tissue in vivo.

Download PDF
Inquiry

Parameter

Optical Parameter
Central wavelength (nm)1730
Output Power (mJ)>1
Energy Stability<3%
Repeat Frequency (KHz)2
Pulse Width (ns)~10
Divergence Angle<7
Function Parameter
Control MethodLocal / Remote
Control InterfaceDB9,RS422
Cooling MethodWater cooling
Powered By220VAC/50Hz
Environmental Requirements
Operating Temperature (℃)15-35
Storage Temperature (℃)0-50
Humidity0-80%
Weight & Size
Laser Head Weight (Kg)10
Power Weight (Kg)10
Laser Head Size (mm)464*260*118.5
Power Size2U

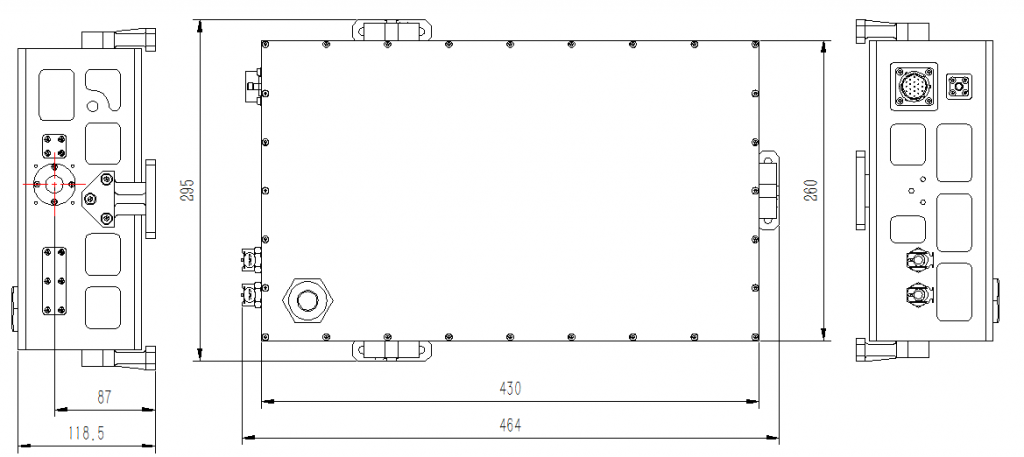

Sructure

Feature
Feature
  • High-efficiency nonlinear frequency transformation
  • Compact and easy to integrate
  • Local control and external control
