405nm Laser
CRYLINK’s 405nm laser is 405nm Optical fiber output accurate wavelength laser system, and 405nm Semiconductor laser module. 405nm Optical fiber output accurate wavelength laser system is mainly used in flow cytometry, super resolution microscopy, confocal microscopy and other fields.
405nm Optical Fiber Output Accurate Wavelength Laser System of AWM Series
The quasi wavelength fiber coupled output semiconductor laser system can provide a variety of wavelength options. Fiber coupled output has excellent power stability. Product structure is small, portable, with user-friendly operation interface, perfect refrigeration system, can meet the different needs of users. Our company can also provide customized services according to the requirements of users.
Optical Parameter
| Model | CL405-SIF(FA)-30mW-AWM001 | CL405-SIF(FP)-30mW-AWM002 | CL405-SIF(S)-30mW-AWM003 |
| Central Wavelength (nm) | 405 | 405 | 405 |
| Wavelength Tolerance (nm) | ±3 | ±3 | ±3 |
| Output Power (mW) | 30 | 30 | 30 |
| Line Width (nm) | 0.5 | 0.5 | 0.5 |
| Fiber Interface | FC/APC | FC/PC | SMA905 |
| Power Stability | ±1.0%@8H | ±1.0%@8H | ±1.0%@8H |
System Parameter
| Model | CL405-SIF(FA)-30mW-AWM001 | CL405-SIF(FP)-30mW-AWM002 | CL405-SIF(S)-30mW-AWM003 |
| Power Adjustment Range | 0～100% | 0～100% | 0～100% |
| Preheat Time (Min) | 15 | 15 | 15 |
| Modulation Input | 1KHz TTL or Analog signal 0～５V | ||
| Control Interface | USB, BNC | USB, BNC | USB, BNC |
| Power Input | 100-240VAC, 50/60Hz | 100-240VAC, 50/60Hz | 100-240VAC, 50/60Hz |
| Storage Temperature (℃) | 0～55 | 0～55 | 0～55 |
| Storage Humidity (RH) | 0~80% | 0~80% | 0~80% |
| Operating Temperature (℃) | 10~35 | 10~35 | 10~35 |
| System Weight (Kg) | 2.2 | 2.2 | 2.2 |
| System Size (mm) | 150×102×200 | 150×102×200 | 150×102×200 |
- Built-in TEC, power stability is better than ± 1% @ 8H
- Multiple wavelengths available
- Including host computer control, short circuit protection and other functions
- Multimode fiber optiona
- Flow cytometry
- Confocal microscopy
- Fluorescence excitation
- Granularity measurement
- Super-resolution microscopy
405nm Optical Fiber Output Accurate Wavelength Laser System of AWO 405nm series
The quasi wavelength semiconductor laser module introduced by our company has a variety of wavelengths to choose from, equipped with standard input / output interface, which can be easily embedded into the user’s whole system and achieve stable power output. This series of products adopt optical fiber coupling output mode, equipped with TEC refrigeration module, can provide customized and secondary development services according to customer requirements.
| Model | CL405-SIF(FA)-30mW-AWO001 | CL405-SIF(FP)-30mW-AWM002 | |
| Optical Parameter | Central Wavelength (nm) | 405 | 405 |
| Wavelength Tolerance (nm) | ±10 | ±10 | |
| Output Power (mW) | 30 | 30 | |
| Line Width (nm) | <6 | <6 | |
| Power Stability | ±1.0%@8H | ±1.0%@8H | |
| System Parameter | Power Adjustment Range | 0～100% | 0～100% |
| Preheat Time (Min) | 15 | 15 | |
| Modulation Input | PH2.0-10P | PH2.0-10P | |
| Fiber Interface | FC/APC | FC/PC | |
| Power Input | 4.9~5.1 | 4.9~5.1 | |
| System Power Consumption (W) | <4 | <4 | |
| Storage Humidity (RH) | 0~80% | 0~80% | |
| Storage Temperature (℃) | 0～55 | 0～55 | |
| Operating Temperature (℃) | 10~35 | 10~35 | |
| System Weight (g) | <130 | <130 | |
| System Size (mm) | 76.2×63.5×22 | 76.2×63.5×22 |
- Power stability is better than ± 1% @ 8H
- Built-in TEC, typical power consumption <4W
- Small size, 76.2ⅹ63.5ⅹ22mm
- Optional USB control interface, hardware lock
- Fluorescence Spectrometer
- Laser particle size analyze
- Flow cytometry
- Confocal microscope
- Raman spectrometer

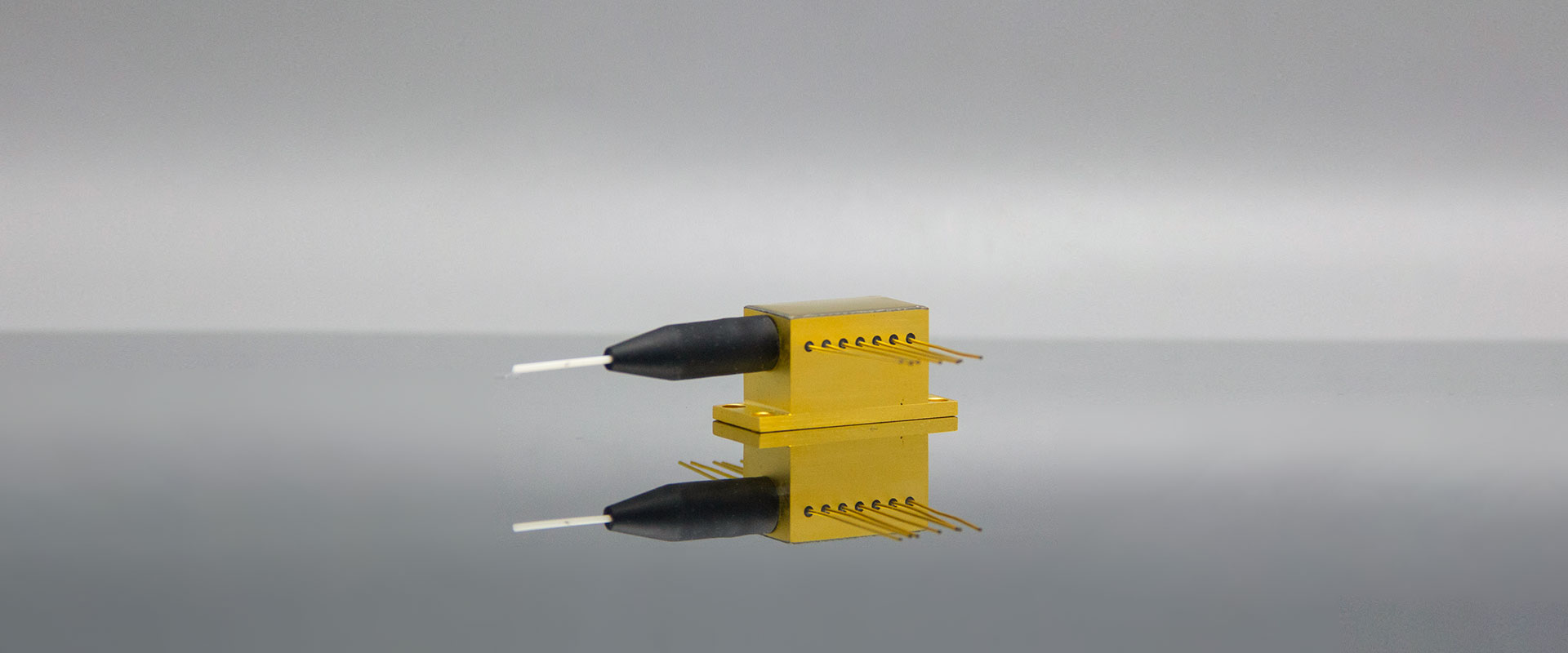

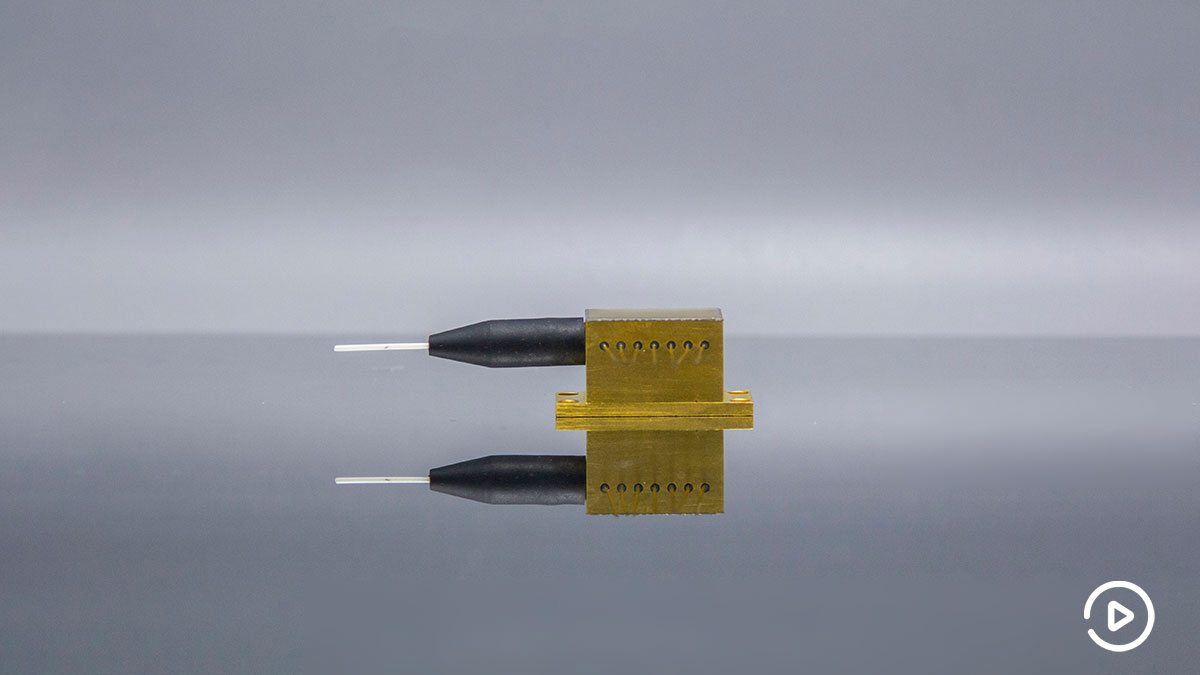

405nm Semiconductor Laser Module
| Model | CL405-5-50mW-SML001 | |
| Optical Parameter | Continuous Output Power (mW) | 50 |
| Center Wavelength (nm) | 405 | |
| Spectral Width (nm) | ≤3 | |
| Characteristics of Wavelength With Temperature (nm/℃) | 0.3 | |
| Electrical Parameter | Threshold Current (mA) | 0.7 |
| Operating Current (mA) | 12 | |
| Operating Voltage (V) | 1.9 | |
| Differential Efficiency (W/A) | 0.8 | |
| PD Current (µA) | <2000 | |
| Thermistor Parameters (kΩ/β(25℃)) | 10±5%/3450 | |
| TEC Maximum Current (A) | 2.2 | |
| TEC Maximum Voltage (V) | 8.7 | |
| Optical Fiber Parameter | Fiber Diameter (µm) | 105 |
| Fiber Cladding Diameter (µm) | 125 | |
| Fiber Coating Diameter (µm) | 250 | |
| Numerical Aperture | 0.22 | |
| Connector | FC/PC, ST, SMA905 | |
| Other Parameter | Operating Temperature (℃) | 10-30 |
| Operating Relative Humidity (%) | 75 | |
| Storage Temperature (℃) | -20~70 | |
| Storage Relative Humidity (%) | 90 | |
| Pin Soldering Temperature，Max (℃) | 250(10 Sec.) |
- Output power：50mW
- Wavelength：405±5nm
- Fiber core diameter：105 µm
- Numerical aperture：0.22NA
- Biological analysis
- Fluorescence detection
405nm Bundling Laser
| Model | CL405-10-1W-BL01 | CL405-10-10W-BL02 | |
| Technical Parameter （25℃） | Central Wavelength (nm) | 405±10 | 405±10 |
| Number Of Bundles | 4 | 37 | |
| Total Power Pop (W) | 1 | 10 | |
| Power Stability | <2%@2H | <2%@2H | |
| Fiber Core Diameter (um) | 105 | 105 | |
| Fiber Cladding Diameter Dclad (um) | 125 | 125 | |
| Optical Fiber Coating Diameter Dbuffer (um) | 250 | 250 | |
| Numerical Aperture NA | 0.22 | 0.22 | |
| Loose Fiber Length (m) | customizable | customizable | |
| Bundle Fiber Length (m) | customizable | customizable | |
| Connector | Scattered：FC/PC，Binding end：SMA905 | ||
| Other Parameter | Operating Temperature (℃) | 10-30 | 10-30 |
| Operating Relative Humidity (%) | 75 | 75 | |
| Storage Temperature (℃) | -20~70 | -20~70 | |
| Storage Relative Humidity (%) | 90 | 90 | |
| Pin Soldering Temperature，Max (℃) | 250(10 Sec.) | 250(10 Sec.) | |
- Research applications
- Medical applications
