1535nm laser

1535nm Laser

1535nm-Laser -DPSSL CRYLINK

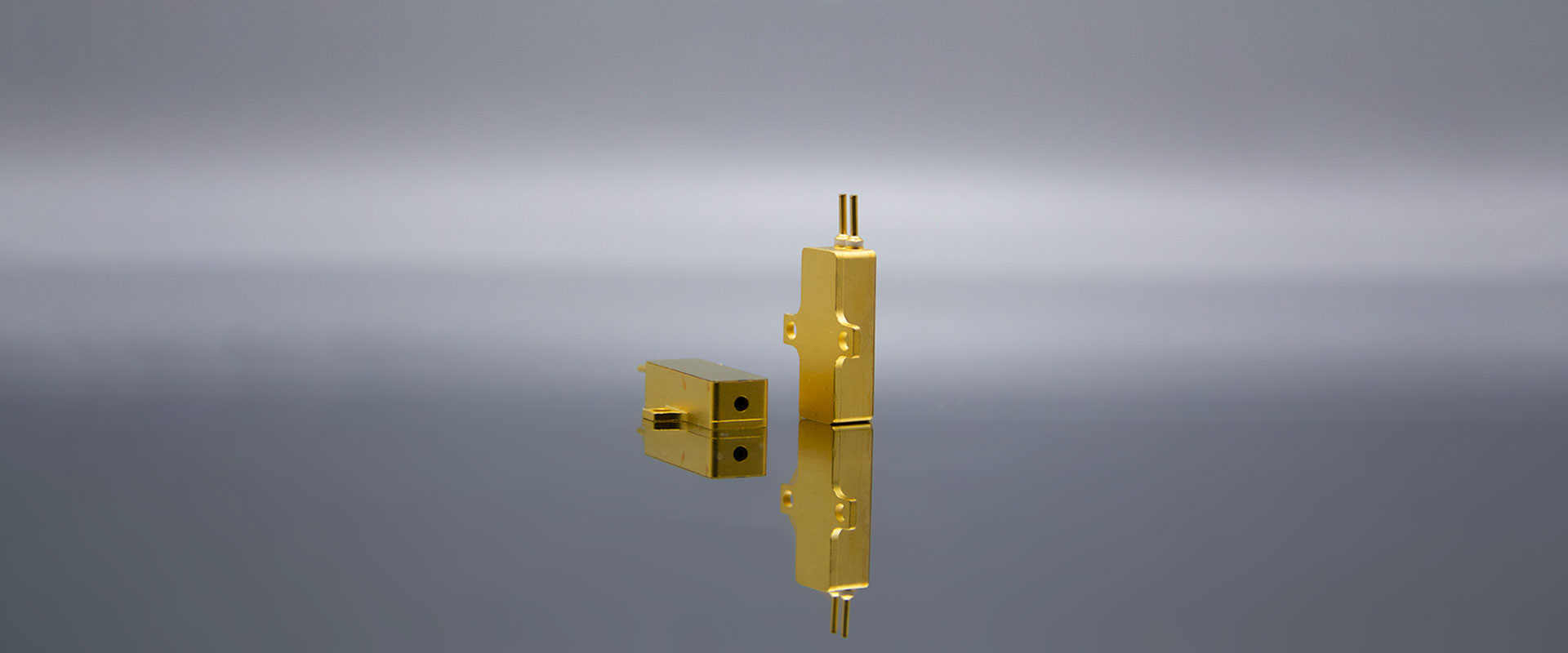

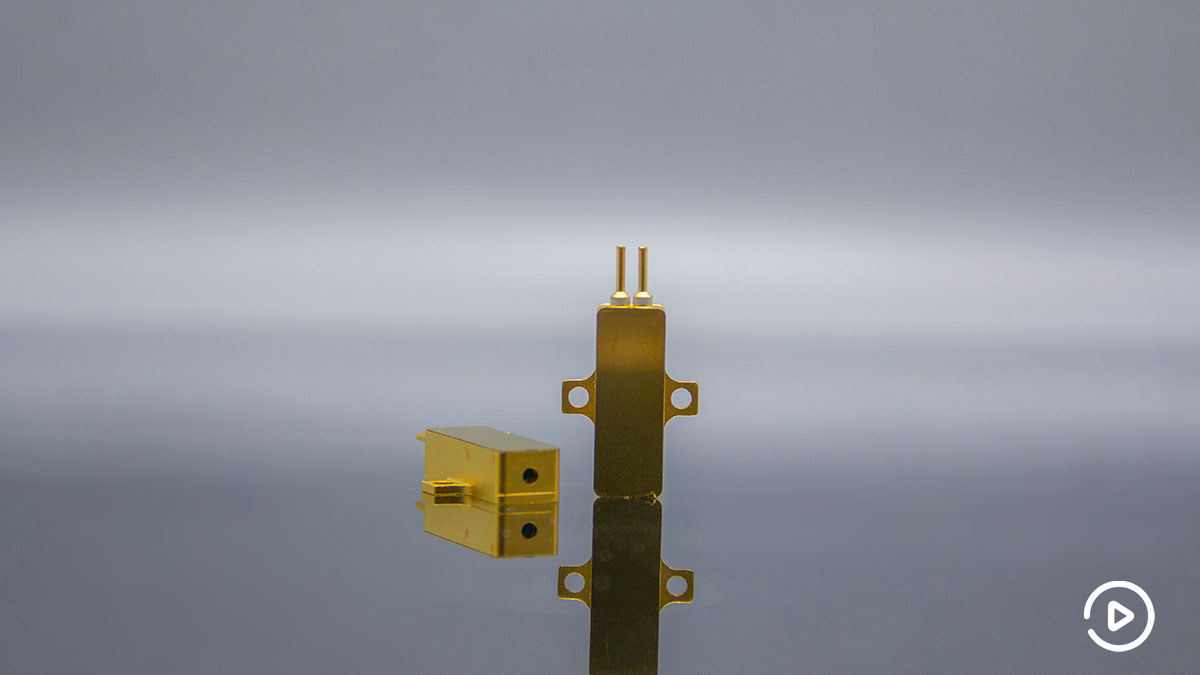

CRYLINK can provide a variety of 1535 nm microchip lasers. It is a 1.5 μ m laser based on Er glass. It is mainly used in range finder and range radar. The transmission band should be 1.5 μ m, so it is an advantage for eyes safe.

Download PDF
Inquiry

1535nm Eye Safe Solid State Laser (Er Glass Laser)

Parameter

1535nm Low Energy
ModelCL-LF100-BCL-LF200-BCL-LF300-BCL-LF100-B-PIN*CL-LF200-B-PIN*CL-LF300-B-PIN*
Wavelength1535nm1535nm1535nm1535nm1535nm1535nm
Output Energy100μJ200μJ300μJ100μJ200μJ300μJ
Pluse Width5ns5ns5ns5ns5ns5ns
Repetition Rate10Hz10Hz10Hz10Hz10Hz10Hz
Divergence Angle10mrad10mrad8mrad10mrad10mrad8mrad
Beam modeTEM00TEM00TEM00TEM00TEM00TEM00
Working Current8A10A12A8A10A12A
Weigth8g8g10g10g10g10g
Size21x8x7mm321x8x7mm325x8x7mm325×8×7mm325×8×7mm325x8x7mm3
Working Temperature Range-40℃~+65℃-40℃~+65℃-40℃~+65℃-40℃~+65℃-40℃~+65℃-40℃~+65℃
Storage Temperature Range-55℃~+80℃-55℃~+80℃-55℃~+80℃-55℃~+80℃-55℃~+80℃-55℃~+80℃
Note: *This model has a built-in PIN, and the PIN amplitude is 2-3V@50Ω impedance
1535nm High Energy
Model CL-LF400-B CL-LF500-B CL-LF800-B CL-LF1000-B
Wavelength 1535nm 1535nm 1535nm 1535nm
Output Energy 400μJ 500μJ 800μJ 1000μJ
Pluse Width 6ns 6ns 8ns 8ns
Repetition Rate 10Hz 10Hz 10Hz 5Hz
Divergence Angle 8mrad 8mrad 7mrad 7mrad
Beam mode TEM00 TEM00 TEM00 TEM00
Working Current 15A 20A 30A 30A
Weigth 10g 13g 20g 20g
Size 28x8x7mm3 32x8x7mm3 40x9x7.7mm3 40x9x7.7mm3
Working Temperature Range -40℃~+65℃ -40℃~+65℃ -40℃~+65℃ -40℃~+65℃
Storage Temperature Range -55℃~+80℃ -55℃~+80℃ -55℃~+80℃ -55℃~+80℃
Note: *This model has a built-in PIN, and the PIN amplitude is 2-3V@50Ω impedance
1535nm High Repetition Frequency
ModelCL-HF50-BCL-HF20-BCL-HF10-BCL-HF50-B-PIN*CL-HF20-B-PIN*CL-HF10-B-PIN*
Wavelength1535nm1535nm1535nm1535nm1535nm1535nm
Output Energy50μJ20μJ10μJ50μJ20μJ10μJ
Pluse Width5ns6ns8ns5ns6ns8ns
Repetition Rate1KHz2.5KHz5KHz1KHz2.5KHz5KHz
Divergence Angle16mrad17mrad18mrad16mrad17mrad18mrad
Working Voltage2V2V2V–––
Spot Diamteter0.3mm0.3mm0.3mm–––
Directivity<0.2°<0.2°<0.2°–––
Beam ModeTEM00TEM00TEM00TEM00TEM00TEM00
Working Current5A5A5A5A5A5A
Weigth8g8g8g12g12g12g
Size21x8x7mm321x8x7mm321x8x7mm325×8×7mm325×8×7mm325×8×7mm3
Working Temperature Range-40℃~+65℃-40℃~+65℃-40℃~+65℃-40℃~+65℃-40℃~+65℃-40℃~+65℃
Storage Temperature Range-55℃~+80℃-55℃~+80℃-55℃~+80℃-55℃~+80℃-55℃~+80℃-55℃~+80℃
Note: *This model has a built-in PIN, and the PIN amplitude is 2V@50Ω impedance

Laser Stucture

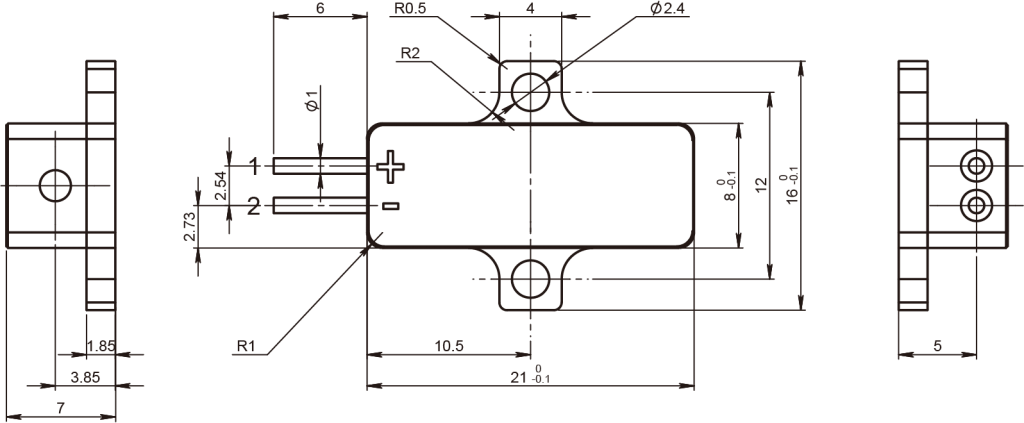

100, 200μJ Laser Size Diagram

1535nm laser 21MM size

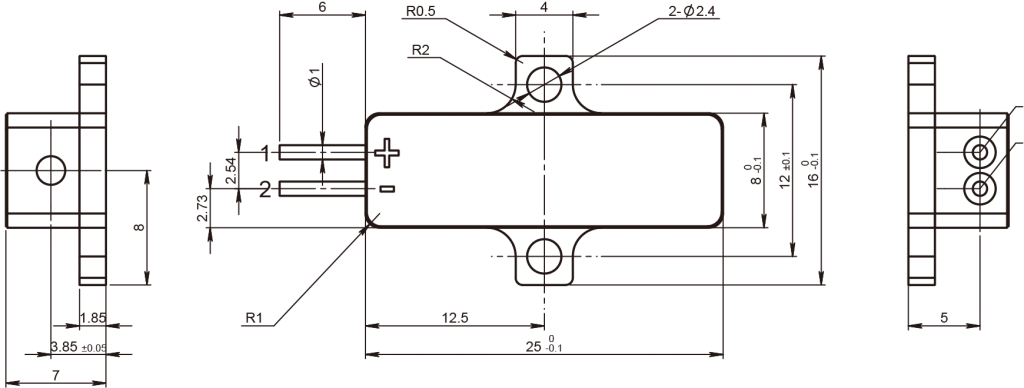

300μJ Laser Size Diagram

1535nm laser 25mm size

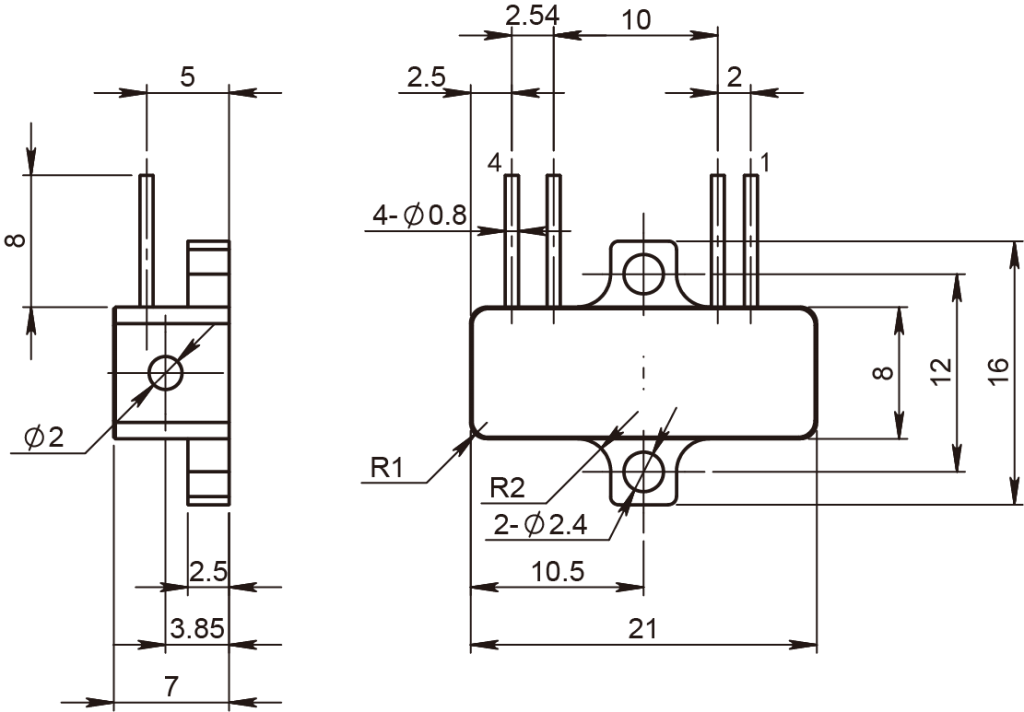

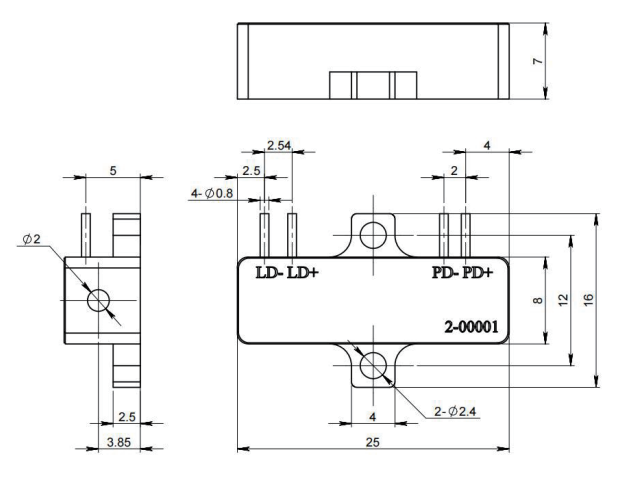

100,200,300μJ Laser(include PIN) Size Diagram

LF300-B-PIN

400μJ Laser Size Diagram

1535nm laser 28mm size

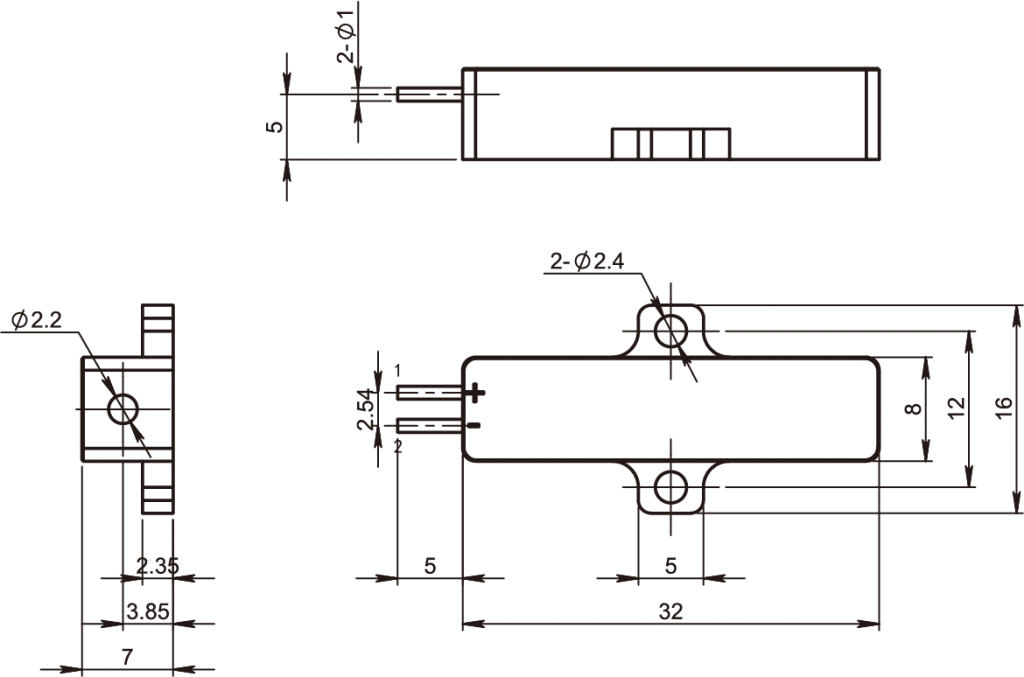

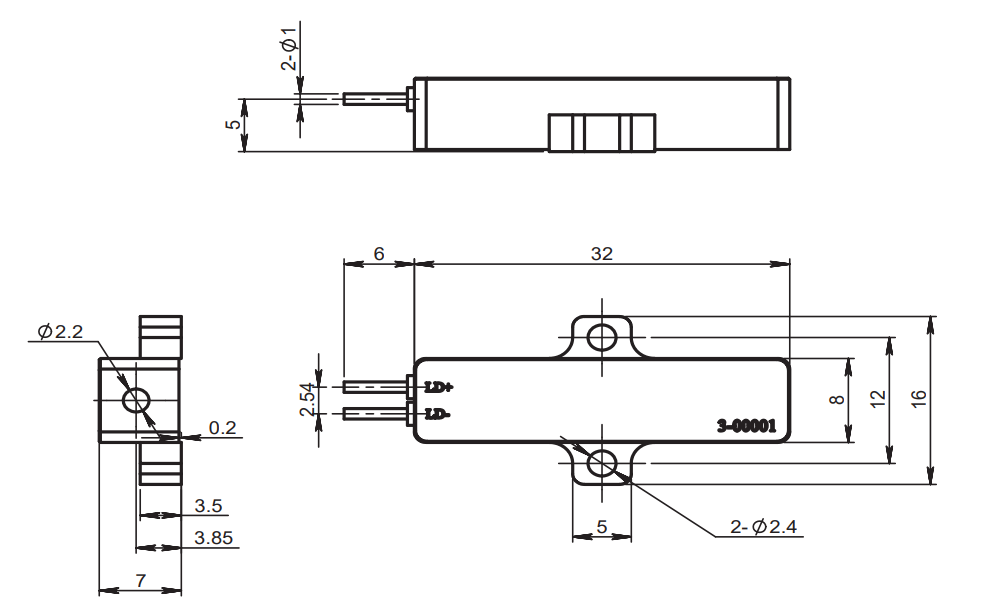

500μJ Laser Size Diagram

CL-LF500-B

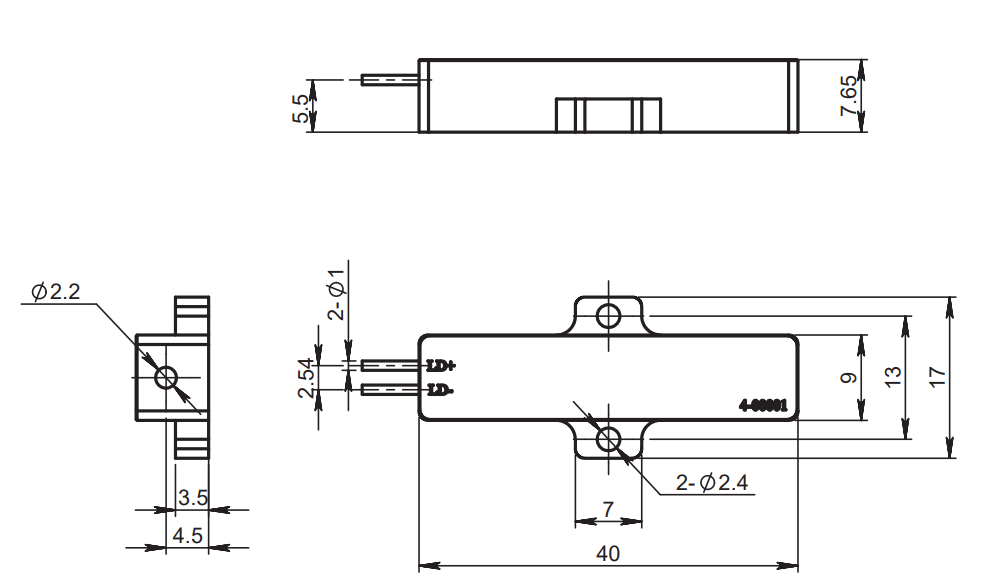

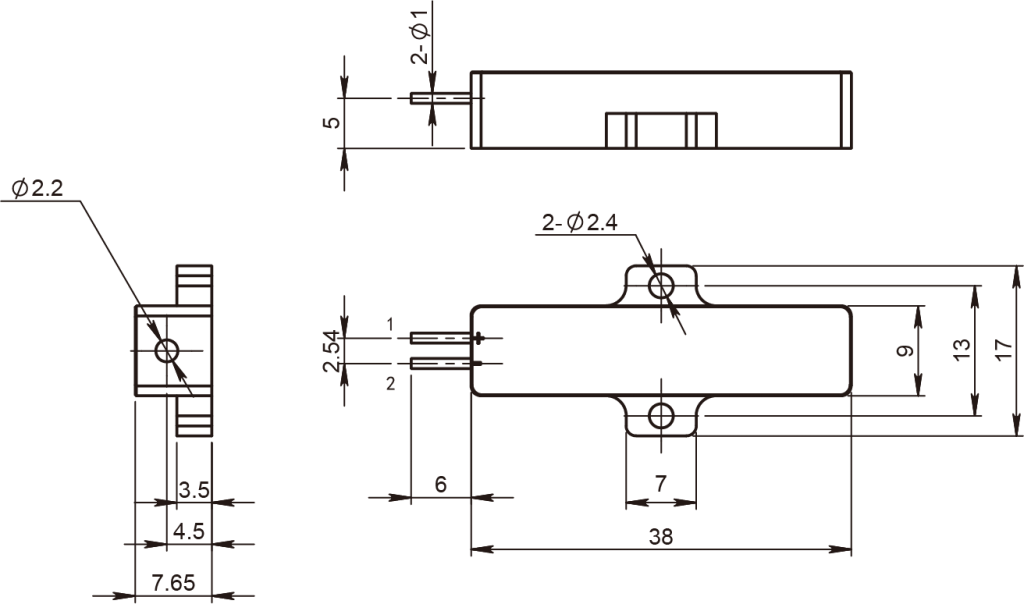

800, 1000μJ Laser Size Diagram

CL-LF7500-B,CL-LF1000-B

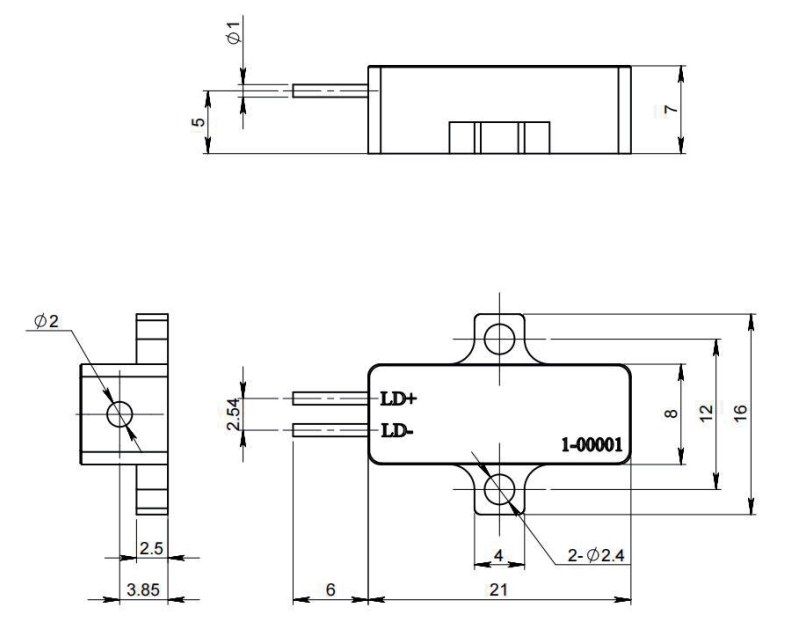

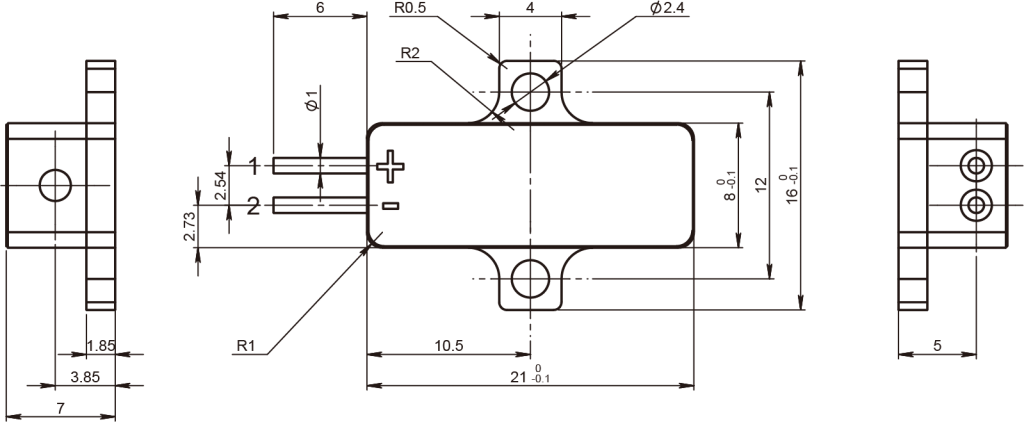

High Repetition Dimension Diagram

CL-HF60-B

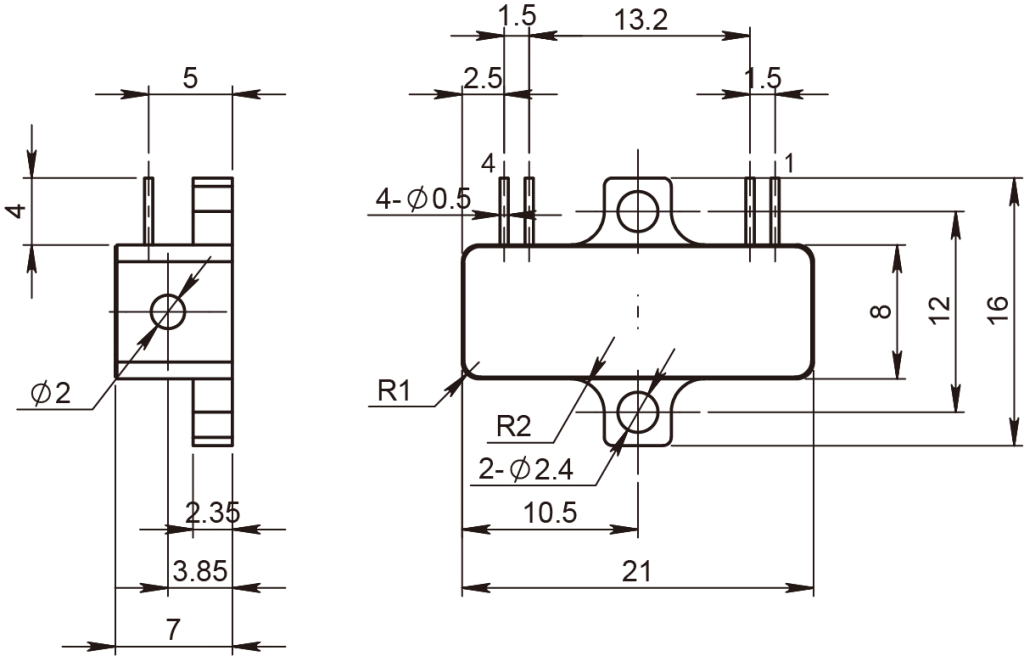

High Repetition(include PIN) Dimension Diagram

CL-HF50-B-PIN,CL-HF20-B-PIN,CL-HF10-B-PIN

Feature
Application
Feature
  • Based on Er: glass passive Q-switching technology
  • Eye safety
  • Extremely light weight
  • The smallest package size of its kind in the world
  • Wide operating temperature range
Application
  • Eye safety laser ranging

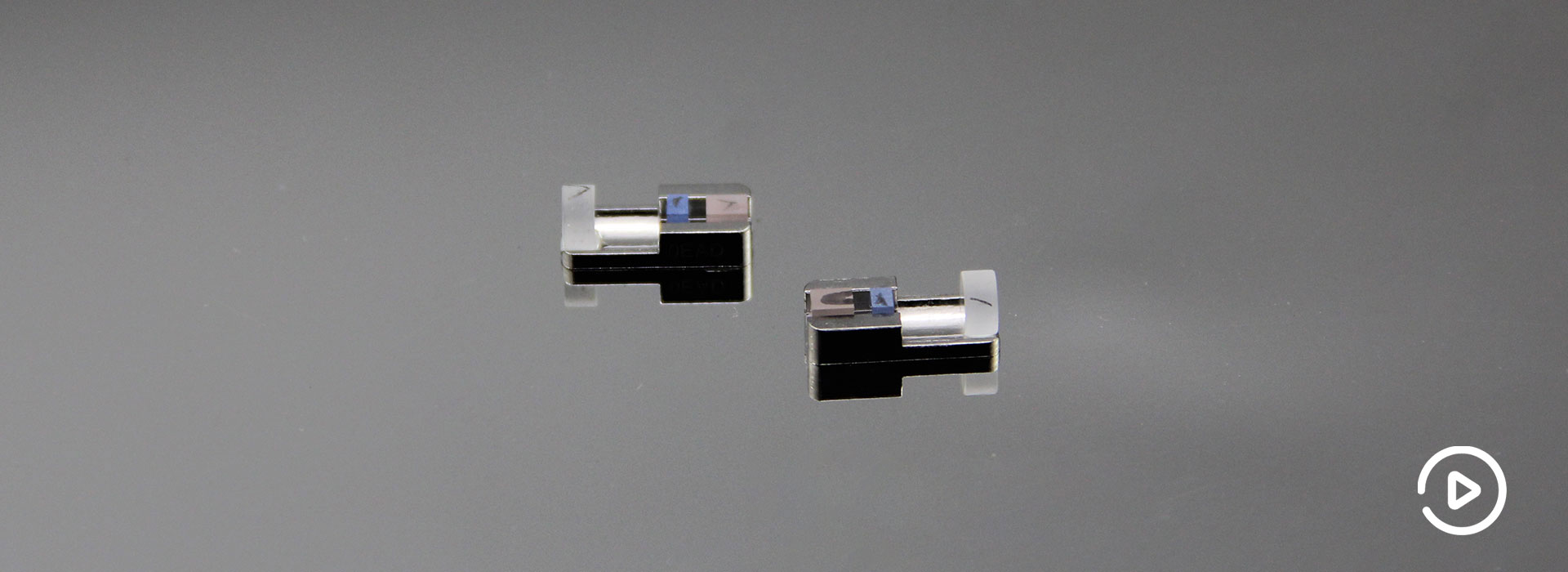

1535nm Eye Safe Solid State Laser Material Module (Er Glass Laser)

Parameter

ModelCLR15-200-M4CLR15-260-M4CLR15-300-M4
Wavelength (nm)1535
Output Energy (uJ)200260300
Pulse Width (ns)4.5-5.1
Repetition Rate (Hz)1-30
Full Divergence Angle (mrad)8.4-12
Size of Pump Light (um)200-300
Wavelength of Pump Light (nm)940
Power of Pump Light (W)8-12
Build Up Time (ms)1.7
Storage Temperature Range ( ) -40~65
Working Temperature Range ( ) -55~70-55~70
