Quasi Wavelength Laser

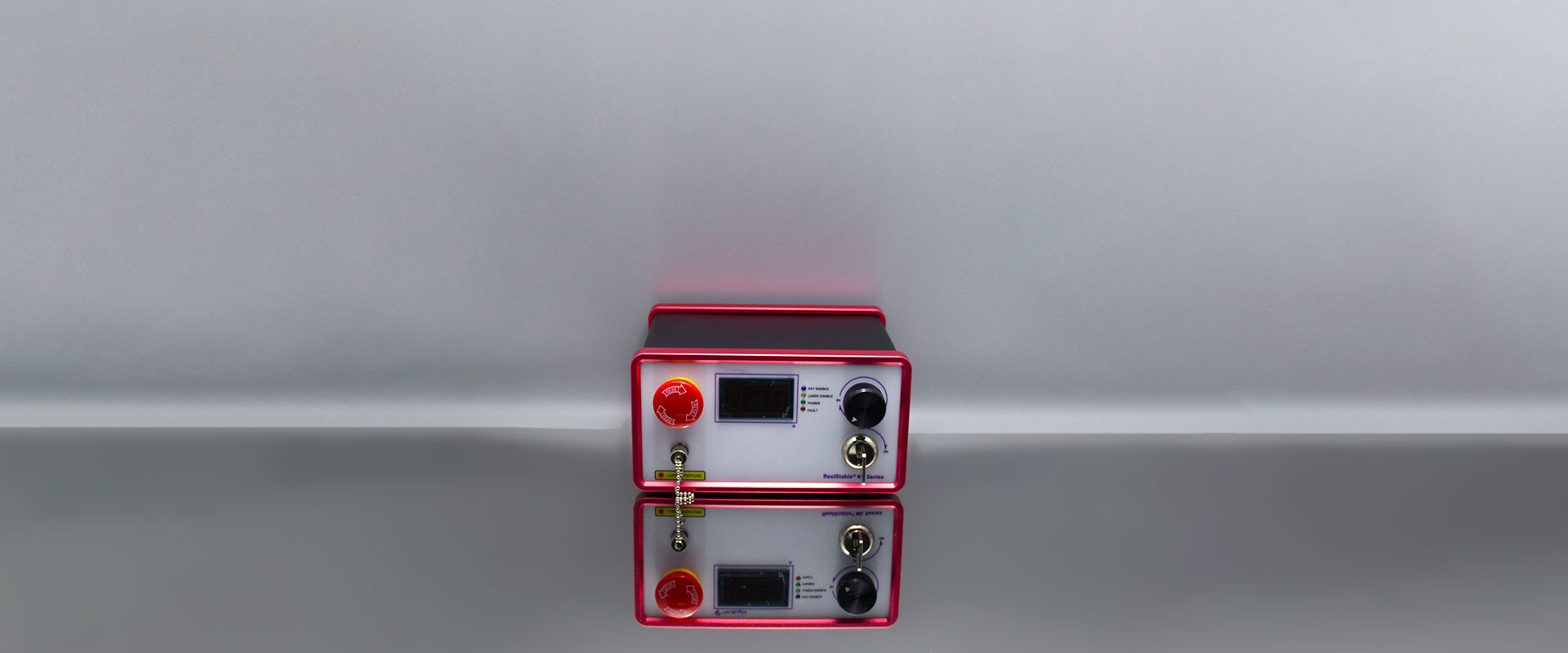

The quasi wavelength fiber coupled output semiconductor laser system can provide a variety of wavelength options. Fiber coupled output has excellent power stability. Product structure is small, portable, with user-friendly operation interface, perfect refrigeration system, can meet the different needs of users. Our company can also provide customized services according to the requirements of users.

Feature

  • Built-in TEC, power stability is better than ± 1% @ 8H
  • Multiple wavelengths available
  • Including host computer control, short circuit protection and other functions
  • Multimode fiber optiona

Application

  • Flow cytometry
  • Confocal microscopy
  • Fluorescence excitation
  • Granularity measurement
  • Super-resolution microscopy
405nm
450nm
520nm
638nm
658nm
785nm
405nm

Optical Parameter

 CL405-SIF(FA)-30mW-AWM001CL405-SIF(FP)-30mW-AWM002CL405-SIF(S)-30mW-AWM003
Central Wavelength (nm)405405405
Wavelength Tolerance (nm)±3±3±3
Output Power (mW)303030
Line Width (nm)0.50.50.5
Fiber InterfaceFC/APCFC/PCSMA905
Power Stability±1.0%@8H±1.0%@8H±1.0%@8H

System Parameter

 CL405-SIF(FA)-30mW-AWM001CL405-SIF(FP)-30mW-AWM002CL405-SIF(S)-30mW-AWM003
Power Adjustment Range0~100%0~100%0~100%
Preheat Time (Min)151515
Modulation Input 1KHz TTL or Analog signal 0~5V
Control InterfaceUSB, BNCUSB, BNCUSB, BNC
Power Input100-240VAC, 50/60Hz100-240VAC, 50/60Hz100-240VAC, 50/60Hz
Storage Temperature (℃)0~550~550~55
Storage Humidity (RH)0~80%0~80%0~80%
Operating Temperature (℃)10~3510~3510~35
System Weight (Kg)2.22.22.2
System Size (mm)150×102×200150×102×200150×102×200

Download PDF

450nm

Optical Parameter

 CL450-SIF(FA)-20mW-AWM004CL450-SIF(FP)-20mW-AWM005CL450-SIF(S)-20mW-AWM006
Central Wavelength (nm)450450450
Wavelength Tolerance (nm)±6±6±6
Output Power (mW)202020
Line Width (nm)111
Fiber InterfaceAPCFC/PCSMA905
Power Stability±1.0%@8H±1.0%@8H±1.0%@8H

System Parameter

 CL450-SIF(FA)-20mW-AWM004CL450-SIF(FP)-20mW-AWM005CL450-SIF(S)-20mW-AWM006
Power Adjustment Range0~100%0~100%0~100%
Preheat Time (Min)151515
Modulation Input1KHz TTL or Analog signal 0~5V
Control InterfaceUSB, BNCUSB, BNCUSB, BNC
Power Input100-240VAC, 50/60Hz100-240VAC, 50/60Hz100-240VAC, 50/60Hz
System Power Consumption (W)<5<5<5
Storage Temperature (℃)0~550~550~55
Storage Humidity (RH)0~80%0~80%0~80%
Operating Temperature (℃)10~3510~3510~35
System Weight (Kg)2.22.22.2
System Size (mm)150×102×200150×102×200150×102×200

Download PDF

520nm

Optical Parameter

 CL520-SIF(FA)-20mW-AWM007CL520-SIF(FP)-20mW-AWM008CL520-SIF(S)-20mW-AWM009
Central Wavelength (nm)520520520
Wavelength Tolerance±5±5±5
Output Power (mW)202020
Line Width (nm)111
Fiber InterfaceFC/APCFC/PCSMA905
Power Stability±1.0%@8H±1.0%@8H±1.0%@8H

System Parameter

 CL520-SIF(FA)-20mW-AWM007CL520-SIF(FP)-20mW-AWM008CL520-SIF(S)-20mW-AWM009
Power Adjustment Range0~100%
Preheat Time (Min)15
Modulation Input1KHz TTL or Analog signal 0~5V
Control InterfaceUSB, BNC
Power Input100-240VAC, 50/60Hz
Storage Temperature (℃)0~55
Storage Humidity (RH)0~80%
Operating Temperature (℃)10~35
System Weight (Kg)2.2
System Size (mm)150×102×200

Download PDF

638nm

Optical Parameter

 CL638-SIF(FA)-30mW-AWM010CL638-SIF(FP)-30mW-AWM011CL638-SIF(S)-30mW-AWM012
Central Wavelength (nm)638638638
Wavelength Tolerance (nm)±3±3±3
Output Power (mW)303030
Line Width (nm)0.50.50.5
Fiber InterfaceFC/APCFC/PCSMA905
Power Stability±1.0%@8H±1.0%@8H±1.0%@8H

System Parameter

 CL638-SIF(FA)-30mW-AWM010CL638-SIF(FP)-30mW-AWM011CL638-SIF(S)-30mW-AWM012
Power Adjustment Range0~100%0~100%0~100%
Preheat Time (Min)151515
Modulation Input1KHz TTL or Analog signal 0~5V
Control InterfaceUSB, BNCUSB, BNCUSB, BNC
Power Input100-240VAC, 50/60Hz100-240VAC, 50/60Hz100-240VAC, 50/60Hz
Storage Temperature (℃)0~550~550~55
Storage Humidity (RH)0~80%0~80%0~80%
Operating Temperature (℃)10~3510~3510~35
System Weight (Kg)2.22.22.2
System Size (mm)150×102×200150×102×200150×102×200

Download PDF

658nm

Optical Parameter

 CL658-SIF(FA)-30mW-AWM013CL658-SIF(FP)-30mW-AWM014CL658-SIF(S)-30mW-AWM015
Central Wavelength (nm)658658658
Wavelength Tolerance (nm)±5±5±5
Output Power (mW)303030
Line Width (nm)0.50.50.5
Fiber InterfaceFC/APCFC/PCSMA905
Power Stability±1.0%@8H±1.0%@8H±1.0%@8H

System Parameter

 CL658-SIF(FA)-30mW-AWM013CL658-SIF(FP)-30mW-AWM014CL658-SIF(S)-30mW-AWM015
Power Adjustment Range0~100%0~100%0~100%
Preheat Time (Min)151515
Modulation Input1KHz TTL or Analog signal 0~5V
Control InterfaceUSB, BNCUSB, BNCUSB, BNC
Power Input100-240VAC, 50/60Hz100-240VAC, 50/60Hz100-240VAC, 50/60Hz
Storage Temperature (℃)0~550~550~55
Storage Humidity (RH)0~80%0~80%0~80%
Operating Temperature (℃)10~3510~3510~35
System Weight (Kg)2.22.22.2
System Size (mm)150×102×200150×102×200150×102×200

Download PDF

785nm

Optical Parameter

 CL785-SIF(FA)-100mW-AWM016CL785-SIF(FP)-100mW-AWM017CL785-SIF(S)-100mW-AWM018
Central Wavelength (nm)785785785
Wavelength Tolerance (nm)±10±10±10
Output Power (mW)100100100
Line Width (nm)111
Fiber InterfaceFC/APCFC/PCSMA905
Power Stability±1.0%@8H±1.0%@8H±1.0%@8H

System Parameter

 CL785-SIF(FA)-100mW-AWM016CL785-SIF(FP)-100mW-AWM017CL785-SIF(S)-100mW-AWM018
Power Adjustment Range0~100%0~100%0~100%
Preheat Time (Min)151515
Modulation Input1KHz TTL or Analog signal 0~5V
Control InterfaceUSB, BNCUSB, BNCUSB, BNC
Power Input100-240VAC, 50/60Hz100-240VAC, 50/60Hz100-240VAC, 50/60Hz
Storage Temperature (℃)0~550~550~55
Storage Humidity (RH)0~80%0~80%0~80%
Operating Temperature (℃)10~3510~3510~35
System Weight (Kg)2.22.22.2
System Size (mm)150×102×200150×102×200150×102×200

Download PDF
