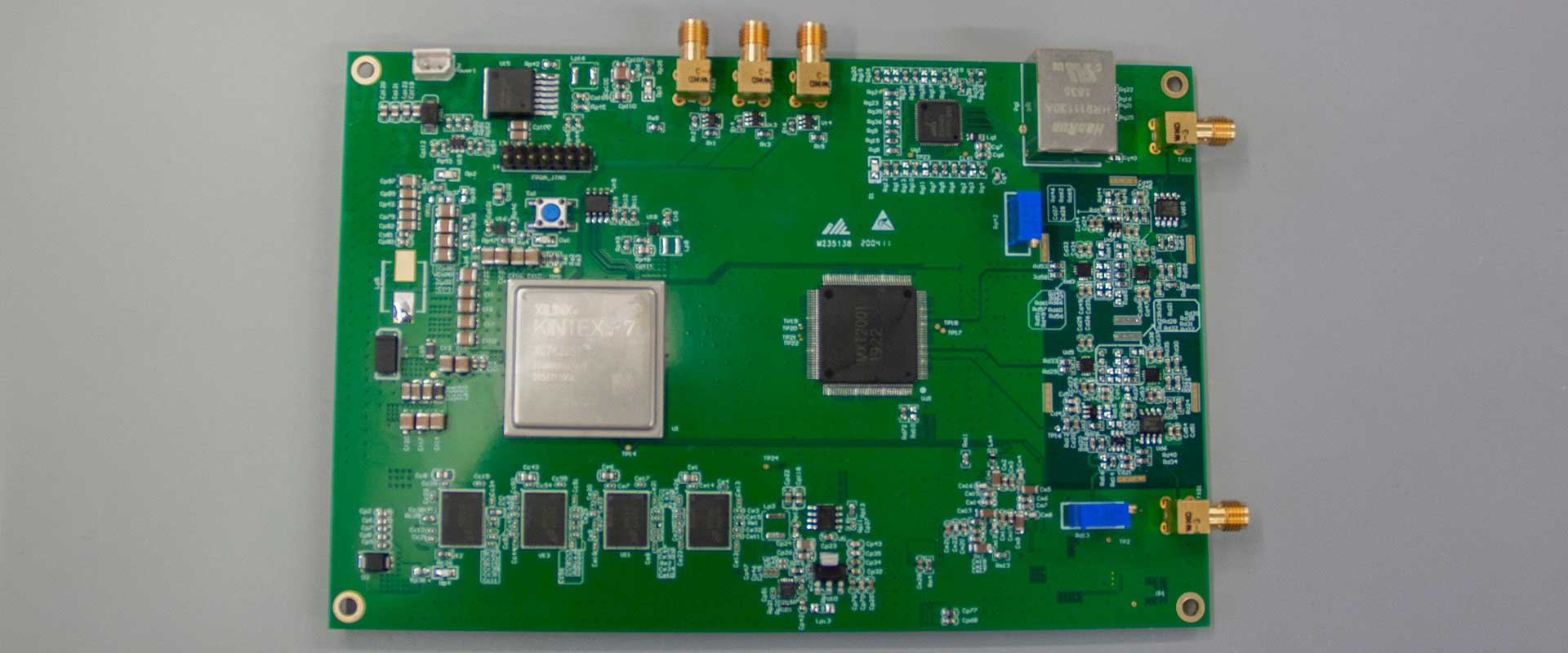

Driver Module

The electronics research and development team has 15 research and development engineers, 6 of whom have more than 5 years of laser electronics design experience. The team is young and passionate, with a rigorous and solid style and dare to challenge innovation. The team’s capabilities include hardware design, embedded software design, FPGA development, and host computer software development. It has rich technical accumulation, undertakes and completes a number of vertical and horizontal projects, and undertakes more than 20 projects per year on average. The project covers solid-state lasers, fiber lasers, and laser applications such as laser communications, laser wind measurement, and gas aerosol detection. Technical accumulation includes: high-precision, low noise, high power and other temperature control, LD drive technology; resonance detection, PDH, saturation absorption, MTS and other laser frequency stabilization technologies; PD, PMT, APD and other photoelectric detection technologies; laser system timing and Signal editing; data acquisition and processing; system integration.

Conventional Continuous LD Driver Module

Supply voltage24VDC-36VDC
LD voltage drop compatibilityAdaptive (less than 0.5V supply voltage)
Continuous drive current0-15A adjustable
Drive current adjustment step0.1A
Drive current rippleLess than 50mA
Drive current efficiencySwitch type constant current source, efficiency greater than 80%
Communication InterfaceRS232/RS422

Conventional Pulse LD Driver Module

Supply voltage24VDC
LD voltage drop compatibilityProvide program-controlled stabilized voltage source module (5v-48v) or LD power supply voltage selected by the customer
Trigger modeExternal trigger, internal trigger
Pulse current frequency1-5kHz
Pulse width0-400us adjustable
Pulse current range0-20A adjustable
Current rippleLess than 10mA
Current rising edgeLess than 20us
Communication InterfaceRS232/RS422

High Speed Pulse Modulation LD Driver Module

Supply voltage12VDC
LD voltage drop compatibility1-8V LD
LD drive current0-9A(pulse)
LD pulse modulation frequency0-100MHz
Modulation interfaceLVTTL,3.3V@50Ω,SMA interface
Communication InterfaceRS232/RS422

High Current Pulse LD drive Module

Supply voltage24VDC
LD voltage drop compatibilityProvide program-controlled stabilized voltage source module (48v-150v) or LD power supply voltage selected by the customer
Trigger modeExternal trigger, internal trigger
Pulse current frequency1-1kHz
Pulse width0-300us adjustable, step 1us
Pulse current range0-120A adjustable
Current rippleLess than 50mA
Current rising edgeLess than 20us
Communication InterfaceRS232/RS422

DFB Seed Driver Module

Supply voltage12VDC
LD voltage drop compatibility1-5V LD
LD drive current0-500mA,Ripple is less than 10uA
TEC temperature controlCompatible with 5V, 3A Tec, temperature control accuracy ± 0.001 ℃
Communication InterfaceRS232/RS422
