Home » 785nm Narrow Line Width Laser

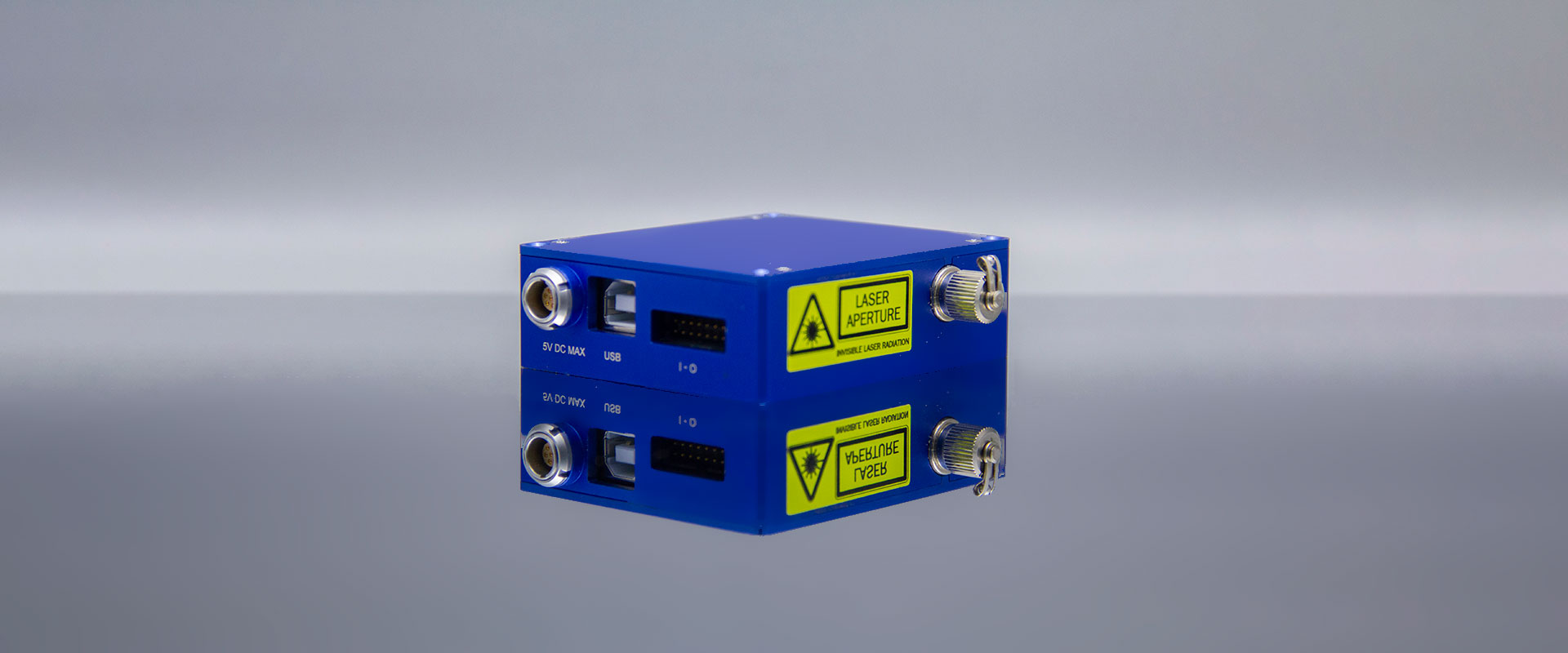

785nm Narrow Line Width Laser

Narrow linewidth laser system is our special product. This series of products are compact in structure, portable and convenient. The core technologies such as short cavity method, VBG wavelength locking, directional optical feedback, built-in semiconductor refrigeration, etc. are used to realize narrow linewidth, stable power and stable spectral output of laser.

Download PDF
Inquiry

Parameter

Optical Parameter
 CL785-MIF(S)-500mW-NLM006CL785-MIF(FP)-500mW-NLM007
Central Wavelength785nm785nm
Output Power500mW500mW
Wavelength Tolerance±0.5nm±0.5nm
Line Width< 0.1nm< 0.1nm
Wavelength Stability±0.005nm @8H Typ.±0.005nm @8H Typ.
Power Stability±1.5% @8H Typ.±1.5% @8H Typ.
Side Mode Rejection Ratio40dB40dB
System Parameters
 CL785-MIF(S)-500mW-NLM006CL785-MIF(FP)-500mW-NLM007
Power Adjustment Range0~100%0~100%
Preheat Time15min15min
Modulation Input1kHz TTL Or Analog signal0-5V1kHz TTL Or Analog signal0-5V
Control InterfaceUSB,BNCUSB,BNC
Fiber InterfaceFC/PCSMA905
Adaptive Optical Fiber105µm,0.22NA105µm,0.22NA
Power Input100V-240V,50/60Hz100V-240V,50/60Hz
System Power Consumption<7W <7W
Storage Temperature-10~60℃-10~60℃
Storage Humidity0~80%RH0~80%RH
Operating Temperature10~35℃10~35℃
System Weight2.5Kg2.5Kg
System Size150ⅹ102ⅹ200mm150ⅹ102ⅹ200mm

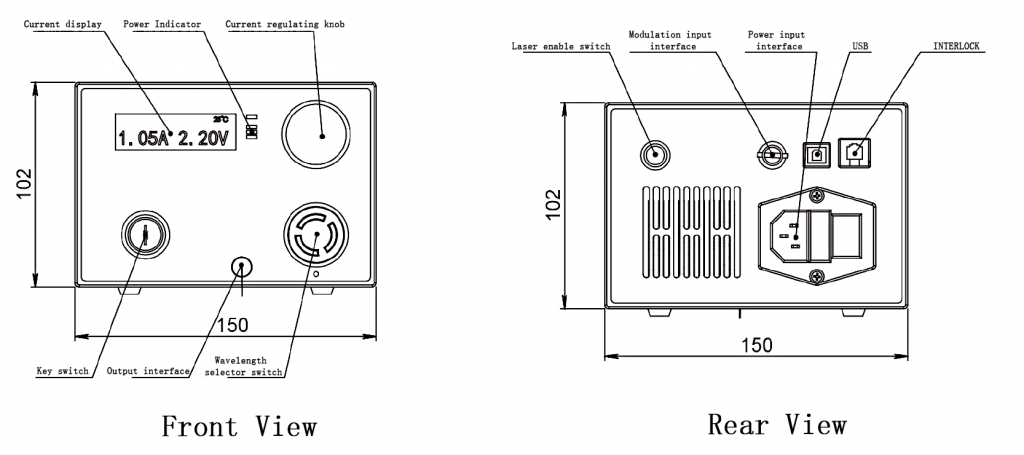

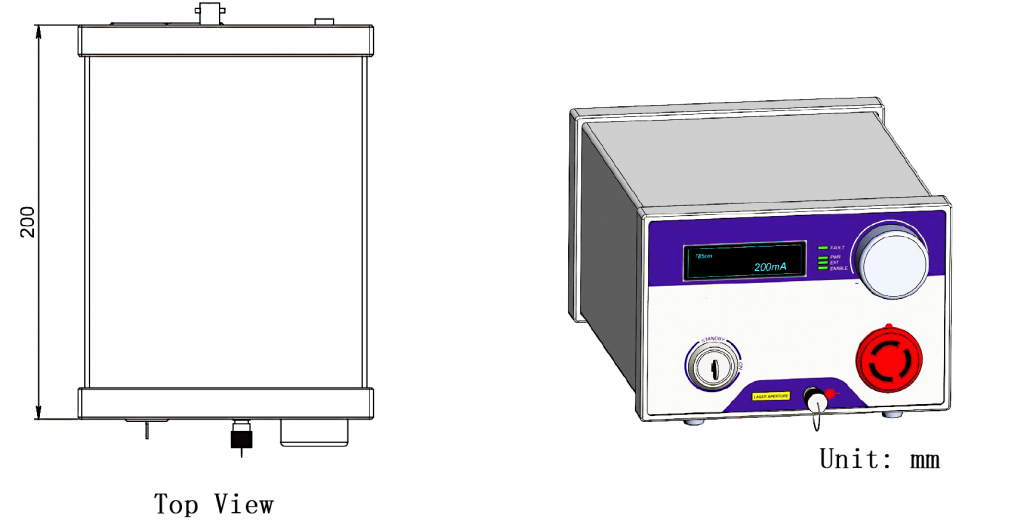

Laser Head Size Chart



Feature
Application
Feature
  • Line width <0.1nm
  • Frequency stability better than ±0.005nm@8H
  • Side mode rejection ratio is better than 40dB (60dB optional)
  • Portable operation, temperature drift <0.007nm / ℃, VBG wave lock
  • Built-in TEC, power stability is better than ± 1.5%
  • Including host computer control, emergency stop switch, short circuit protection and other functions
Application
  • Raman Spectroscopy
  • Fluorescence Spectrum Detection
  • Holographic Detection
  • Up-conversion Material
