Others

Laser Plotter Light Source For C650 Series

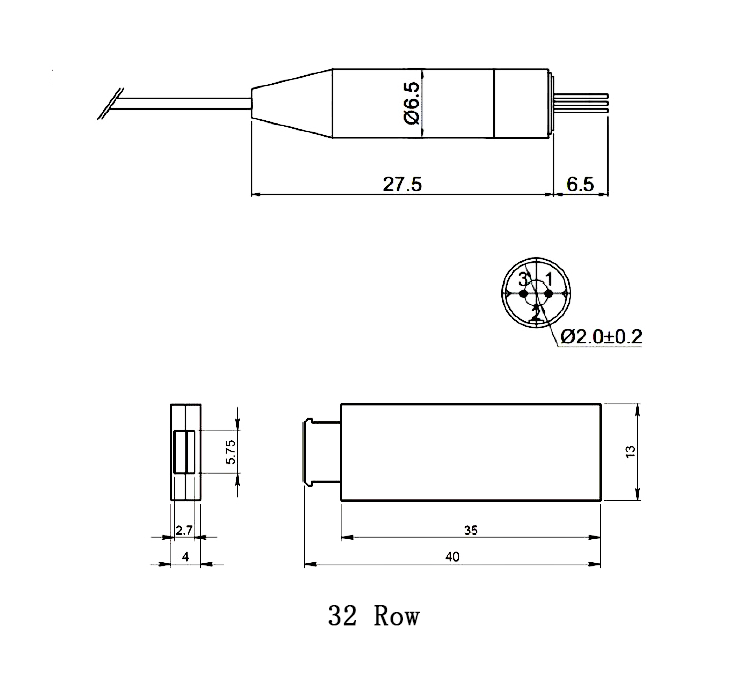

CL650-10-1.5mW-32-C650001

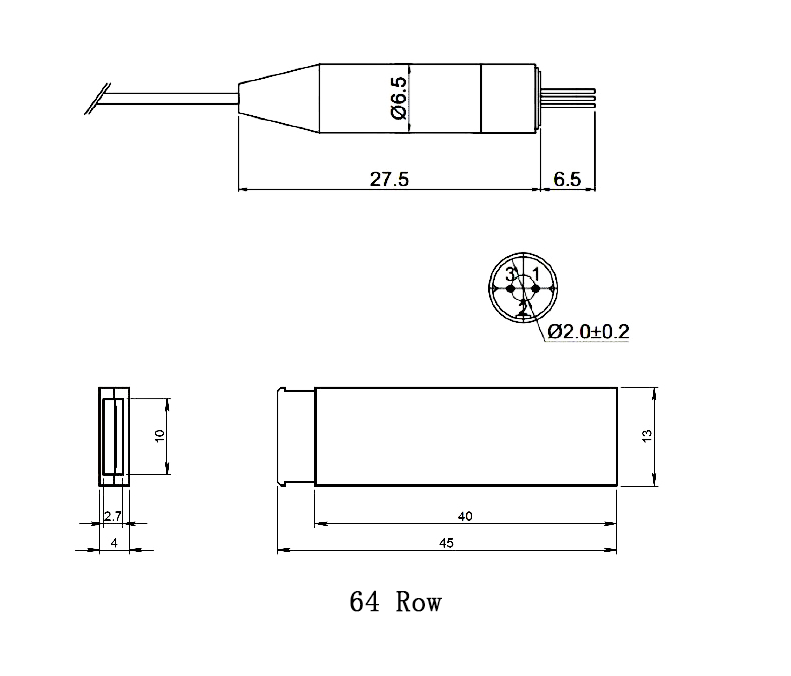

CL650-10-1.5mW-64-C650002
CL650-10-1.5mW-32-C650001
Center wavelength650±10nmnm
Output power1.5±0.4mW
Threshold current19mA
Operating Current26mA
Fiber diameter4µm
Fiber cladding diameter125µm
Fiber coating diameter250µm
Numerical aperture0.13NA
Fiber spacing127µm
Fiber pitch deviation±1.5µm
Linear deviation±3µm
Transmittance>90%
Number of ways32row
Fiber length>200,Customizablecm
PinFeatures
1Laser(-)
2Laser(+);PD N
3PD P
CL650-10-1.5mW-64-C650002
Center wavelength650±10nmnm
Output power1.5±0.4mW
Threshold current19mA
Operating Current26mA
Fiber diameter4µm
Fiber cladding diameter125µm
Fiber coating diameter250µm
Numerical aperture0.13NA
Fiber spacing127µm
Fiber pitch deviation±1.5µm
Linear deviation±3µm
Transmittance>90%
Number of ways64row
Fiber length>200,Customizablecm
PinFeatures
1Laser(-)
2Laser(+);PD N
3PD P

Features

  • Output power: single 1.5mW
  • Fiber: Single 4 µm
  • Numerical aperture: 0.13NA

Application

  • Laser light plotting machine
  • Laser imagesetter

Light Source For CTP Press

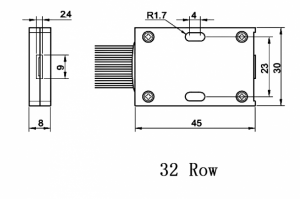

CL650-10-1.5mW-32-C650001

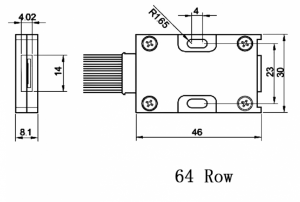

CL650-10-1.5mW-64-C650002
CL650-10-1.5mW-32-C650001
Wavelength830nm
Fiber spacing127µm
Fiber pitch deviation±1.5µm
Linear deviation±3µm
Transmittance>90%
Number of ways32row
Fiber core diameter60µm
Fiber cladding125µm
Numerical aperture0.14–
Fiber length<5m
ConnectorST–

CL650-10-1.5mW-64-C650002
Wavelength830nm
Fiber spacing127µm
Fiber pitch deviation±1.5µm
Linear deviation±3µm
Transmittance>90%
Number of ways64row
Fiber core diameter60µm
Fiber cladding125µm
Numerical aperture0.14–
Fiber length<5m
ConnectorST–

Features

  • Numerical aperture: 0.14NA
  • Number of routes: 64
  • Single or double row

Application

  • CTP printing machine
  • Research applications

Laser Plate Making Lens

In order to better serve the industrial customers, our company has launched the laser lens system for the printing industry, which is independently developed and designed. It is mainly used in CTP, photo painting, printing and dyeing and other industries. See the table below for existing standards. Other wavelengths and indicators can be customized.

CL405-2-1/3.95-LENS001
CL650-10-1/5-LENS002
CL650-10--1/8-LENS003
CL830-2-1/3.95-LENS004
CL405-2-1/3.95-LENS001
Model(-)CL405-2-1/3.95-LENS001
Operating band (nm)405±2
Lens magnification (-)1/3.95
Object distance (mm)200
Object field of view (mm)6.25
Object-side numerical aperture (-)0.1
Image side numerical aperture (-)0.395
Image side working distance (mm)20
Optical system transmittance (%)>85
Optical resolution (line pair / mm)Full field of view≥400
Optical system distortion (%)<0.2
CL650-10-1/5-LENS002
Model(-)CL650-10-1/5-LENS002
Operating band (nm)650±10
Lens magnification (-)1/5
Object distance (mm)212
Object field of view (mm)8
Object-side numerical aperture (-)0.072
Image side numerical aperture (-)0.36
Image side working distance (mm)10.5
Optical system transmittance (%)>80
Optical resolution (line pair / mm)Full field of view≥200
Optical system distortion (%)<0.01
CL650-10--1/8-LENS003
model(-)CL650-10–1/8-LENS003
Operating band (nm)650±10
Lens magnification (-)44204
Object distance (mm)120.7
Object field of view (mm)8.5
Object-side numerical aperture (-)0.015
Image side numerical aperture (-)0.12
Image side working distance (mm)15
Optical system transmittance (%)>90
Optical resolution (line pair / mm)Full field of view≥200
Optical system distortion (%)<0.01
CL830-2-1/3.95-LENS004
model(-)CL830-2-1/3.95-LENS004
Operating band (nm)830±2
Lens magnification (-)1/3.95
Object distance (mm)195
Object field of view (mm)8.2
Object-side numerical aperture (-)0.12
Image side numerical aperture (-)0.47
Image side working distance (mm)14
Optical system transmittance (%)>90
Optical resolution (line pair / mm)Full field of view≥200
Optical system distortion (%)<0.2

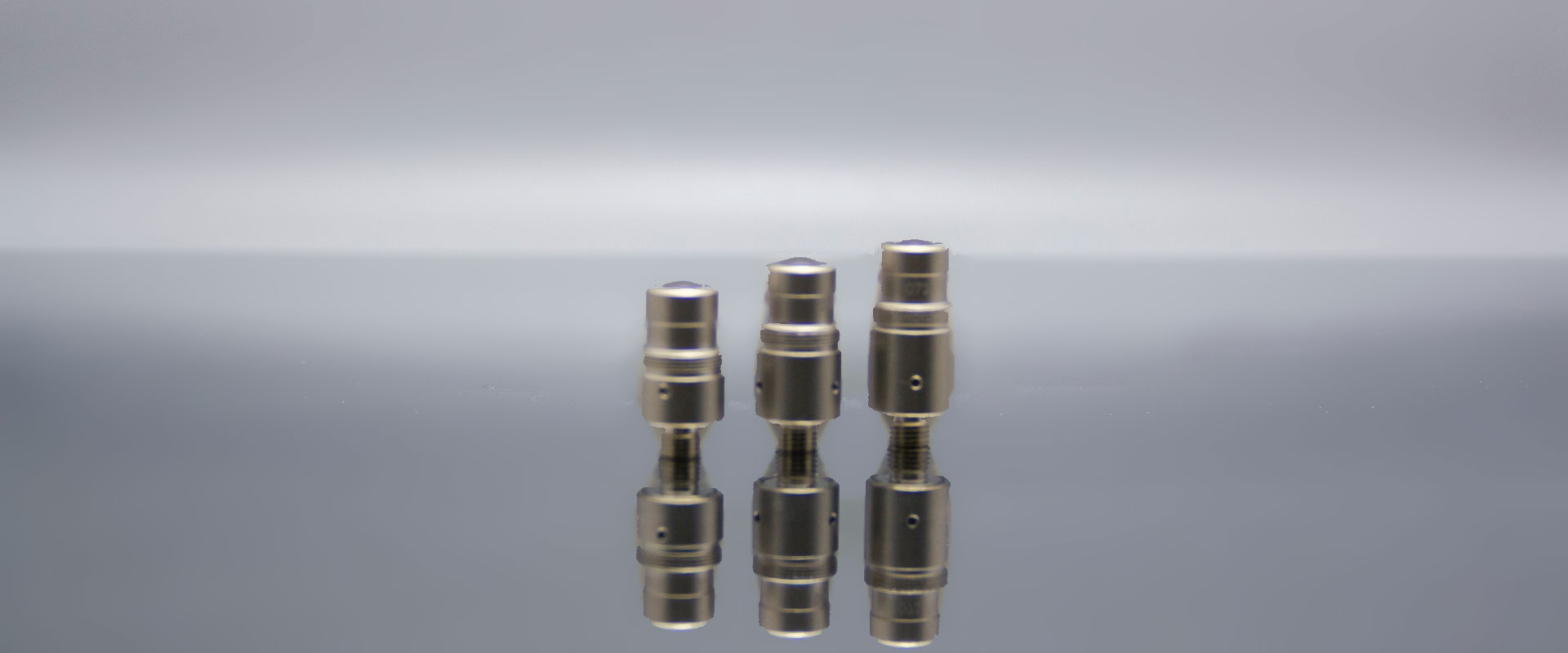

Optical Fiber Collimating Lens

  • Collimates single-mode and multi-mode fibers
  • Adjustable focal length
  • Different collimation spot diameters and divergence angles can be provided according to user requirements
CL400~700-4-S(FP)-LENS005
CL200~2500-12.7-M(S)-LENS006
CL400~700-30-S(FP)-LENS007
CL400~700-75-S(FP)-LENS008
CL400~700-4-S(FP)-LENS005
ModelCL400~700-4-S(FP)-LENS005
Operating Wavelength (nm)400-700
Lens focal length (mm)4
Numerical aperture0.13
Beam diameter (mm)1
Far-field divergence angle (mrad)<1
Outside diameter of lens barrel (mm)18
Lens barrel length (mm)29
Fiber TypeSingle-mode fiber
Fiber interfaceFC/PC
CL200~2500-12.7-M(S)-LENS006
ModelCL200~2500-12.7-M(S)-LENS006
Operating Wavelength (nm)200-2500
Lens focal length (mm)12.7
Numerical aperture0.22
Beam diameter (mm)6
Far-field divergence angle (mrad)<5
Outside diameter of lens barrel (mm)15
Lens barrel length (mm)20
Fiber TypeMultimode fiber
Fiber interfaceSMA905
CL400~700-30-S(FP)-LENS007
ModelCL400~700-30-S(FP)-LENS007
Operating Wavelength (nm)400-700
Lens focal length (mm)30
Numerical aperture0.13
Beam diameter (mm)7
Far-field divergence angle (mrad)<1
Outside diameter of lens barrel (mm)26
Lens barrel length (mm)53
Fiber TypeSingle-mode fiber
Fiber interfaceFC/PC
CL400~700-75-S(FP)-LENS008
ModelCL400~700-75-S(FP)-LENS008
Operating Wavelength (nm)400-700
Lens focal length (mm)75
Numerical aperture0.13
Beam diameter (mm)20
Far-field divergence angle (mrad)<1
Outside diameter of lens barrel (mm)50
Lens barrel length (mm)88
Fiber TypeSingle-mode fiber
Fiber interfaceFC/PC
